115

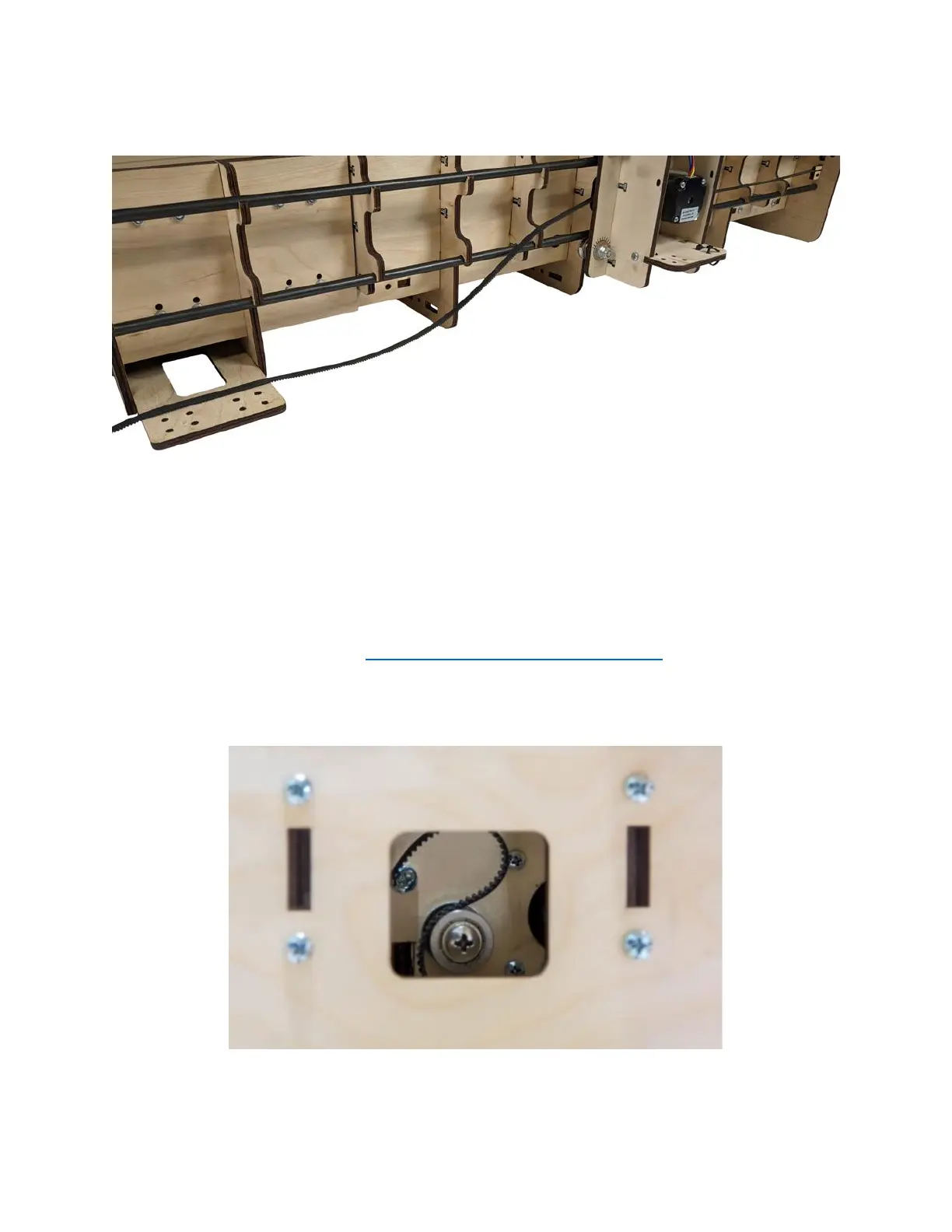

6e Routing the free end of the Belt through the Gantry.
Note: Slide the Gantry Assembly in front of the square access hole in the X
Frame. This opening provides the access you need to loop the Belt around
the Idler and Flange Bearings. We suggest that you watch the short video
demonstrating how to correctly route and install the Belts around the
Flange and Idler Bearings. https://youtu.be/SAz9UjGeOa0
