BobsCNC Evolution Series - Page 127

126

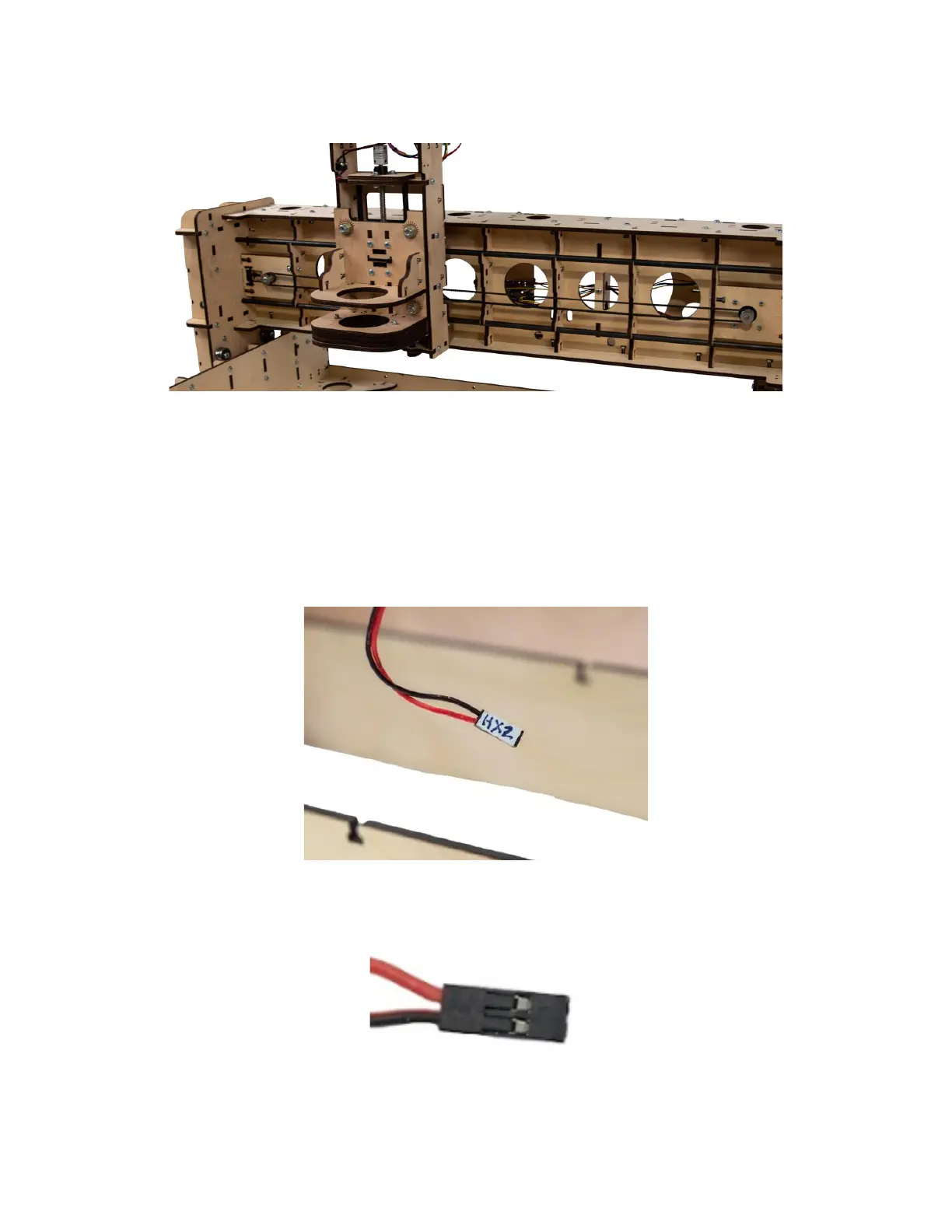

Step 9 Wiring the Self Squaring Gantry.
9a Separate the red and black Wire on the X2 Home
Switch Wire as shown.
9b Turn the pin connector over to view the locking
mechanism that holds the wires in place.
Completed Y Axis Belt Installation
