133

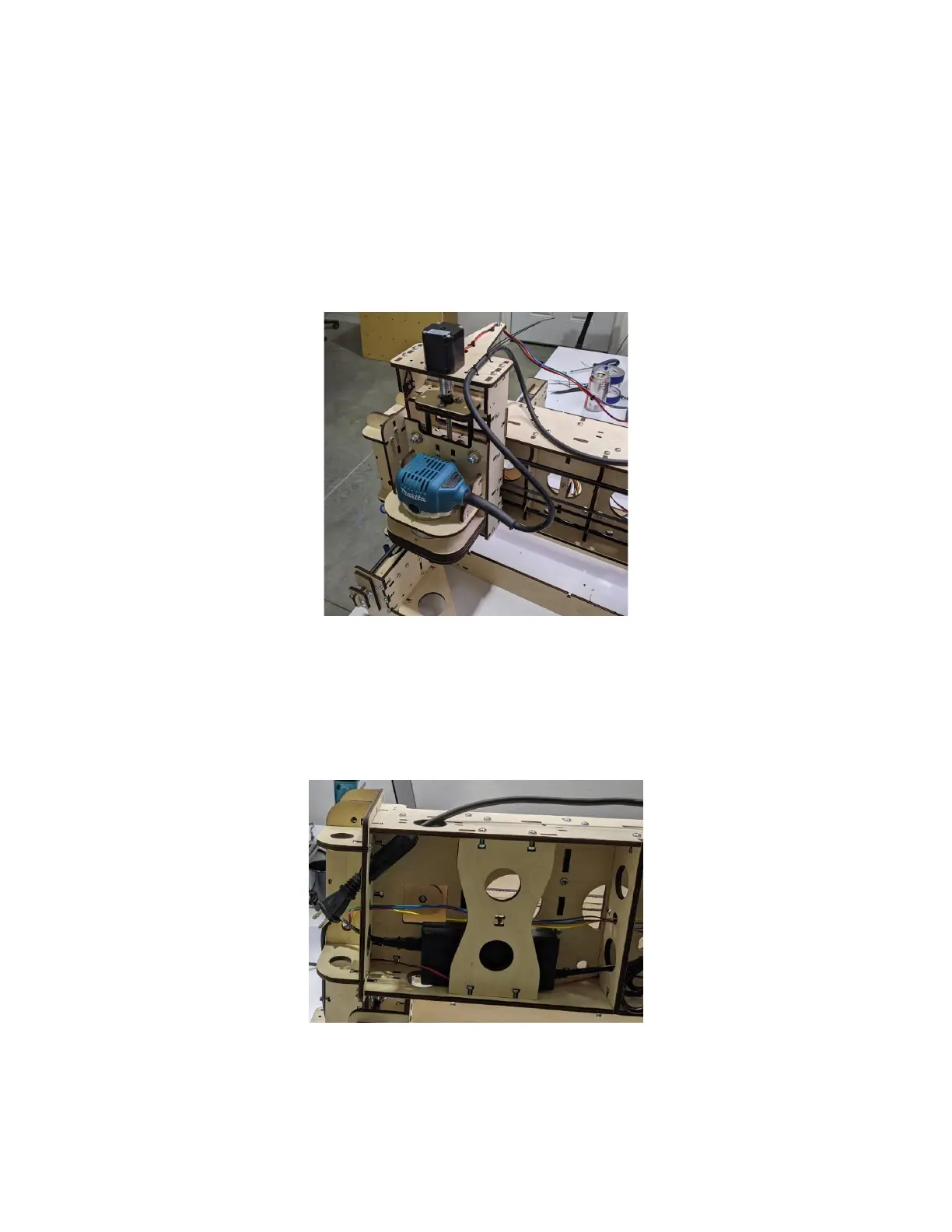

10d To secure the Router Cord to the Router Carriage and
Gantry, first lower the Router Carriage as low as
possible. Use Zip Ties to secure the Router Power
Cord to the top of the Router Carriage Assembly as
shown. Be careful to route the Cord without putting
stress on the stress relief as shown.
10e Route the plug down and through the access hole on
the left side of the Gantry Back Side as shown, then
through the side access hole.
