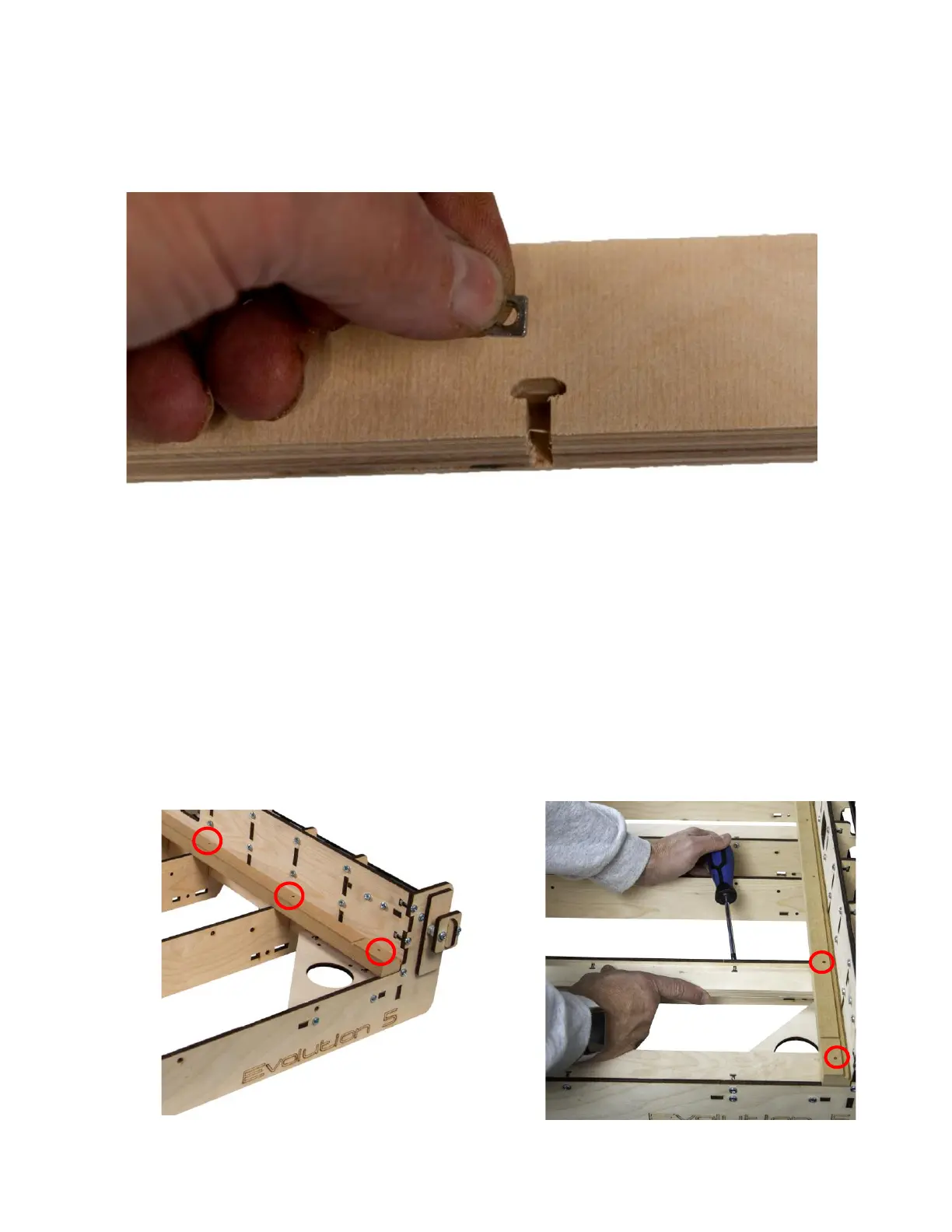

Step 1 Insert four M4 Square Nuts into each of the T-Slots in the SB1
Fastening Strip.
Step 2 Use one of the T Slot Small Strip Board (SB3) to determine on
which side of the frame support to install the mounting strips.
are properly positioned to attach the T-Slot boards. Position the
strip with the notched line at the rear of the frame assembly.
Use the predrilled holes (circled below) in the strip to determine
the side on which the Fastening Strips (SB1) will be mounted
