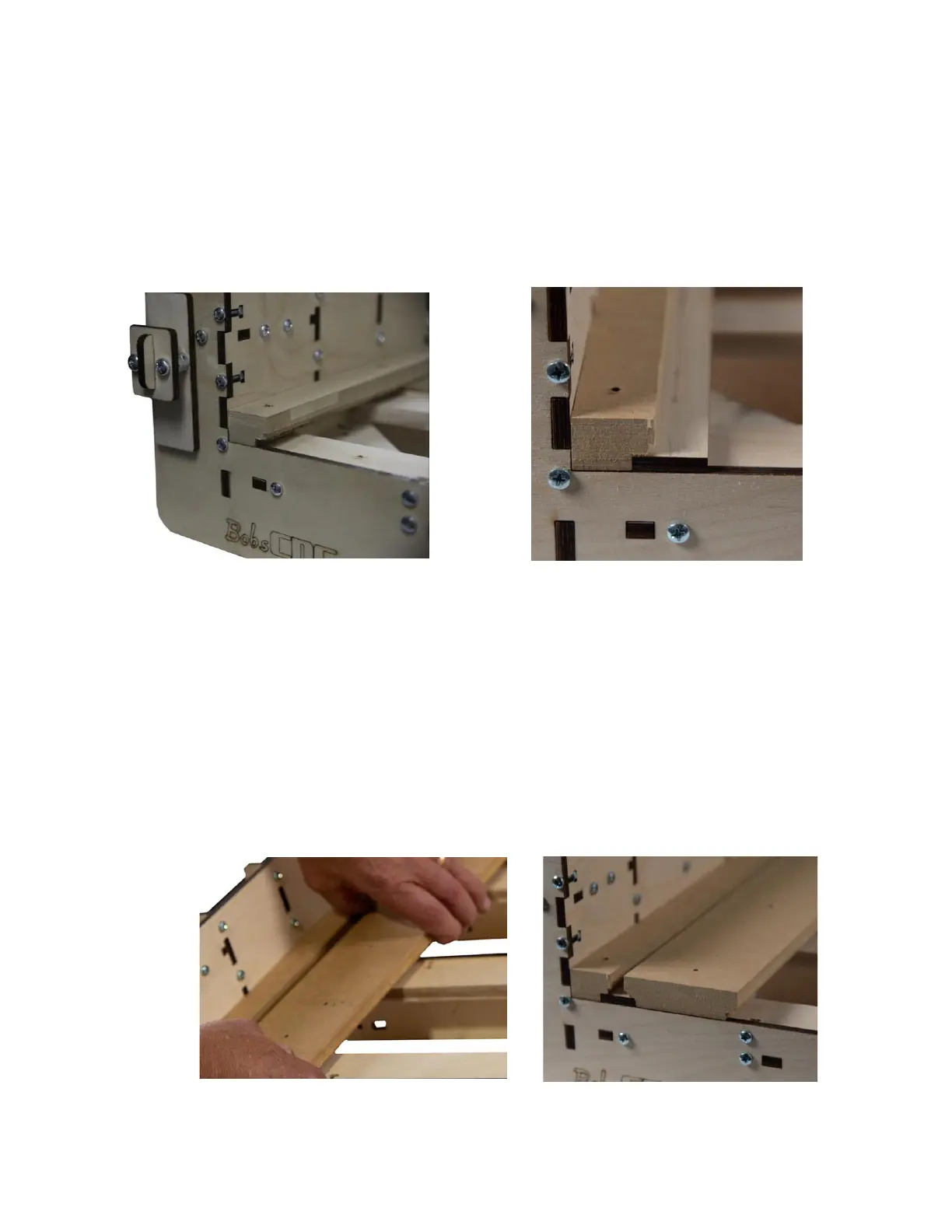

Step 6 Install the T-Slot Small Board (SB3) along the left side of the
frame with the notch facing down as shown. Next, install the
Spacer Strip Assembly so that it lies beneath the bottom notch
of the T-Slot Board.
The Spoilboard will fit flush with the front of the CNC.
Step 7 Repeat, using T-Slot Large Board (SB4), making sure the notch
is fully seated on top of the Spacer Strip. Repeat the procedure
to install the remaining Spacer Strips and T-Slot Boards. Install
the remaining T Slot Small Board(SB3) is installed to the right
side. Make sure the T Slot Boards and Spacer Strips are lying flat
on the X Frame Assembly Cross Members.
