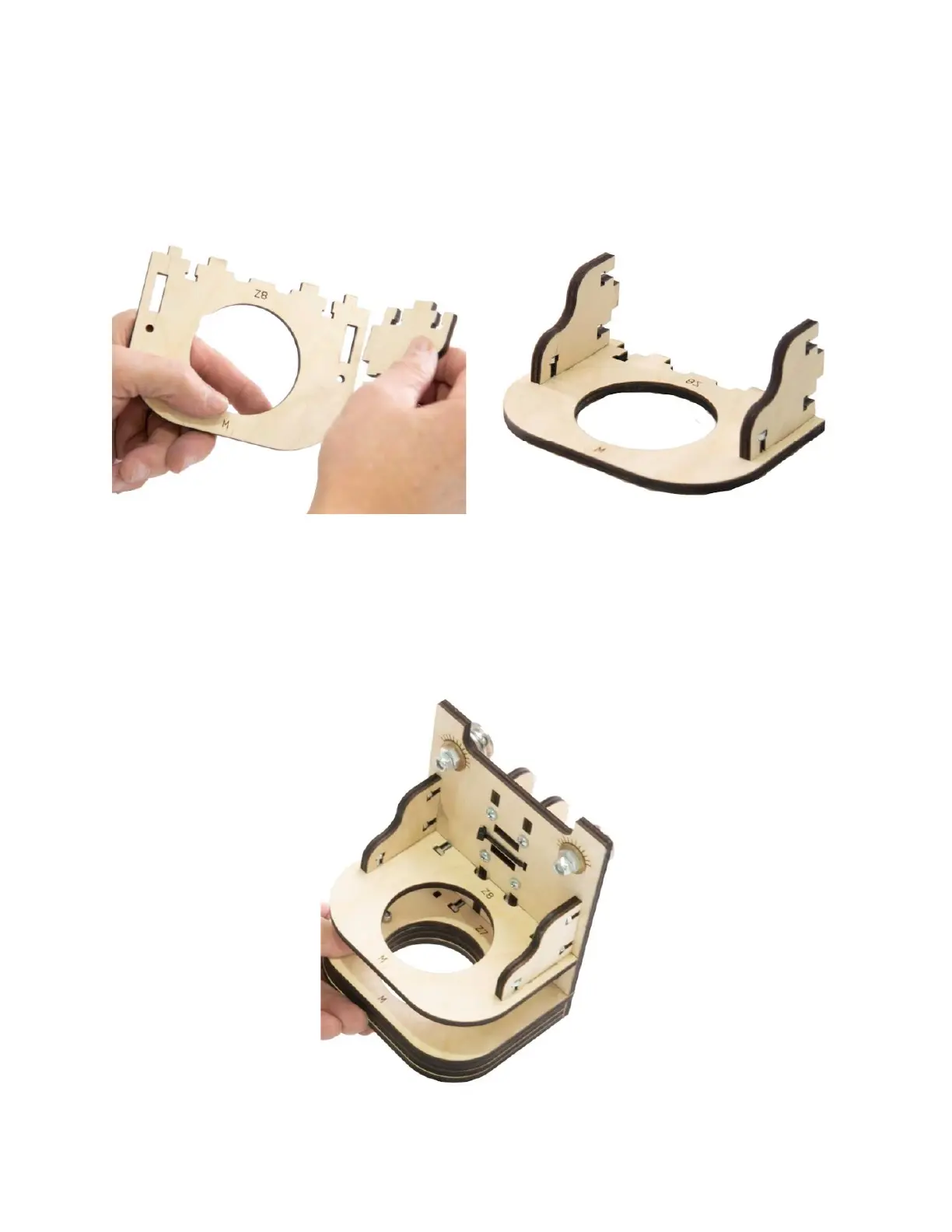

Step 11 Attach the two (Z1) Z Frame Mount Supports to the (Z8) Z
Spindle Support and secure with two M4 x 16 Machine Screws
and Nuts.
Step 12 Attach the Spindle Support Assembly to the Z-Frame Assembly
with six M4 x 16 Machine Screws and Nuts as shown.
