Illustrated Step by Step Instructions

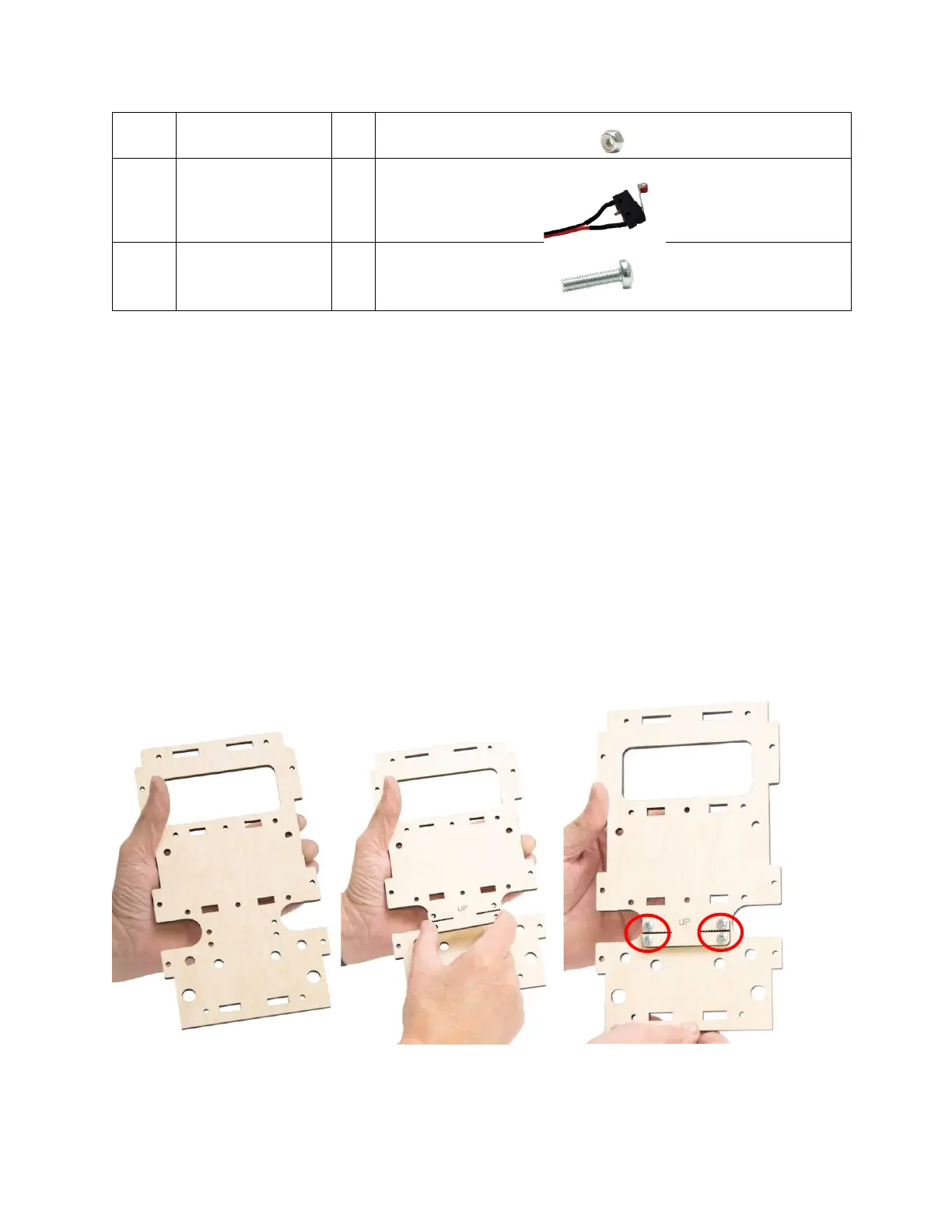

Step 1 Attach the Belt Retainer (Y6) to the back side of the Y Carriage
Frame (Y4) and secure with four M4 x 16 Machine Screws and
Lock Nuts as shown below. Make sure the ‘UP’ mark is visible
and oriented toward the top of the Y Carriage Frame (NOTE:
The Eccentric Bearing adjustment marks are on the opposite
side of the Y Carriage Frame as shown).
