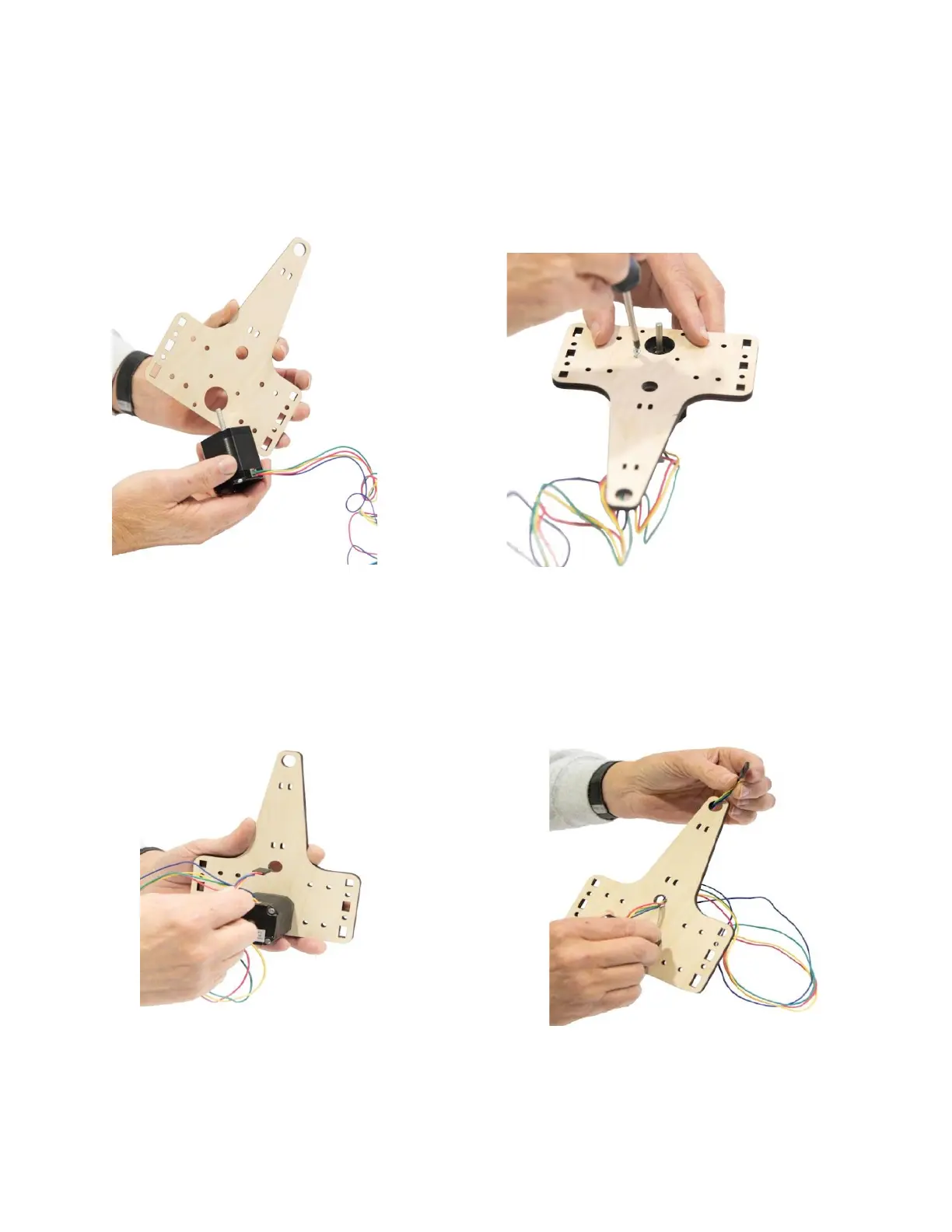

Step 4 Attach the Stepper Motor to the Z Stepper Motor Mount (Y1)
using four M3 x 10 Machine Screws. Note: The Stepper Motor
wires are facing towards the protrusion.
Step 5 Thread the Stepper Motor wiring harness through the Motor
Mount as shown.
