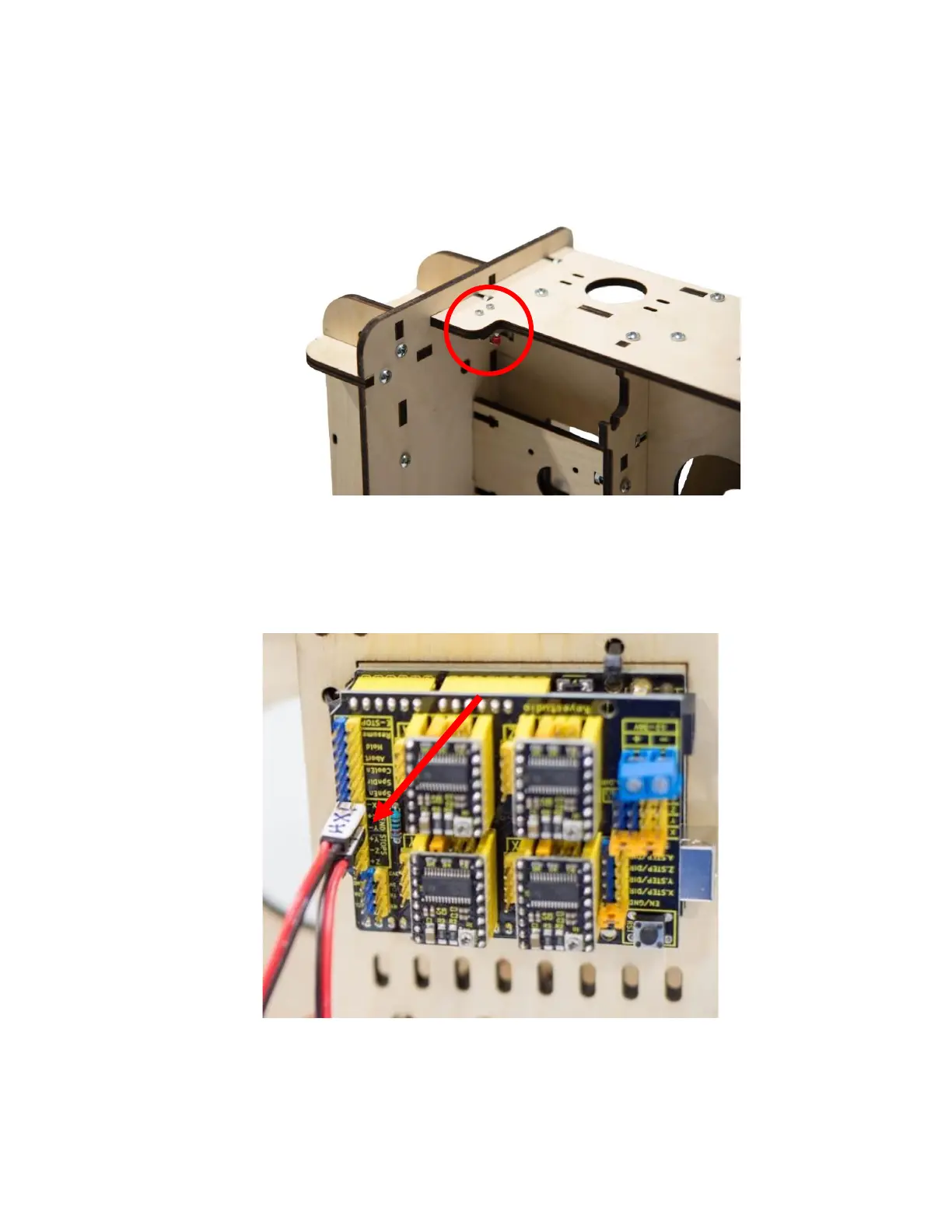

23c Mount the Y Home switch on the top left side
of the front of the Gantry using two M2.5 x 16
Machine Screws and Lock Nuts as shown.
23d Connect the Y Home Switch plug to the “Y-” pin on
the Arduino Controller as shown.
-
