96

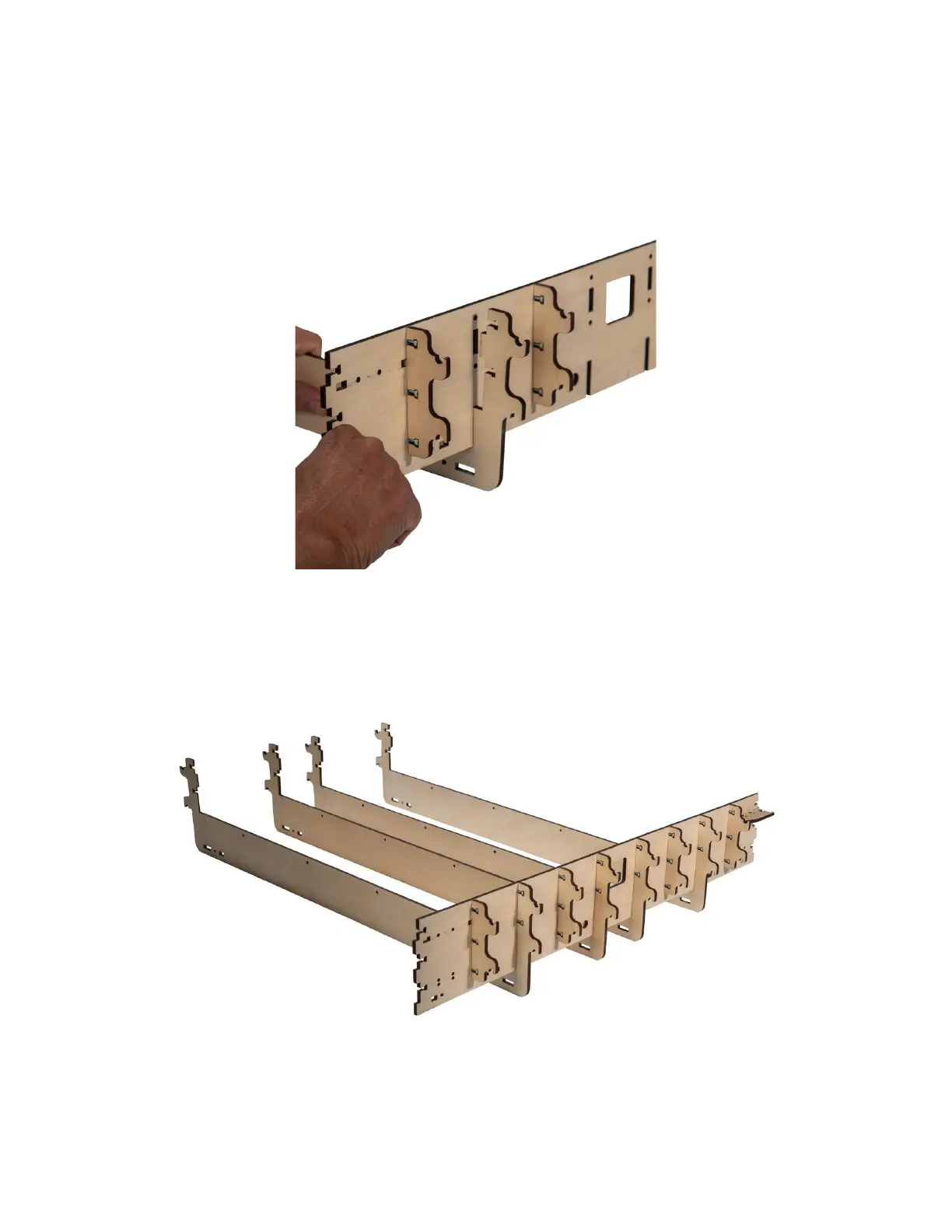

Step 5 Align the slots in the Right Side Assembly with the tabs in the in
the Frame Mid Support (X4) as shown and secure with two M4 x
16 Screws and Nuts.
Step 6 Align the slots of the right Side Assembly with the tabs of the
remaining three Frame Mid Supports as shown and secure with
two M4 x 16 Screws and Nuts for each.
