150

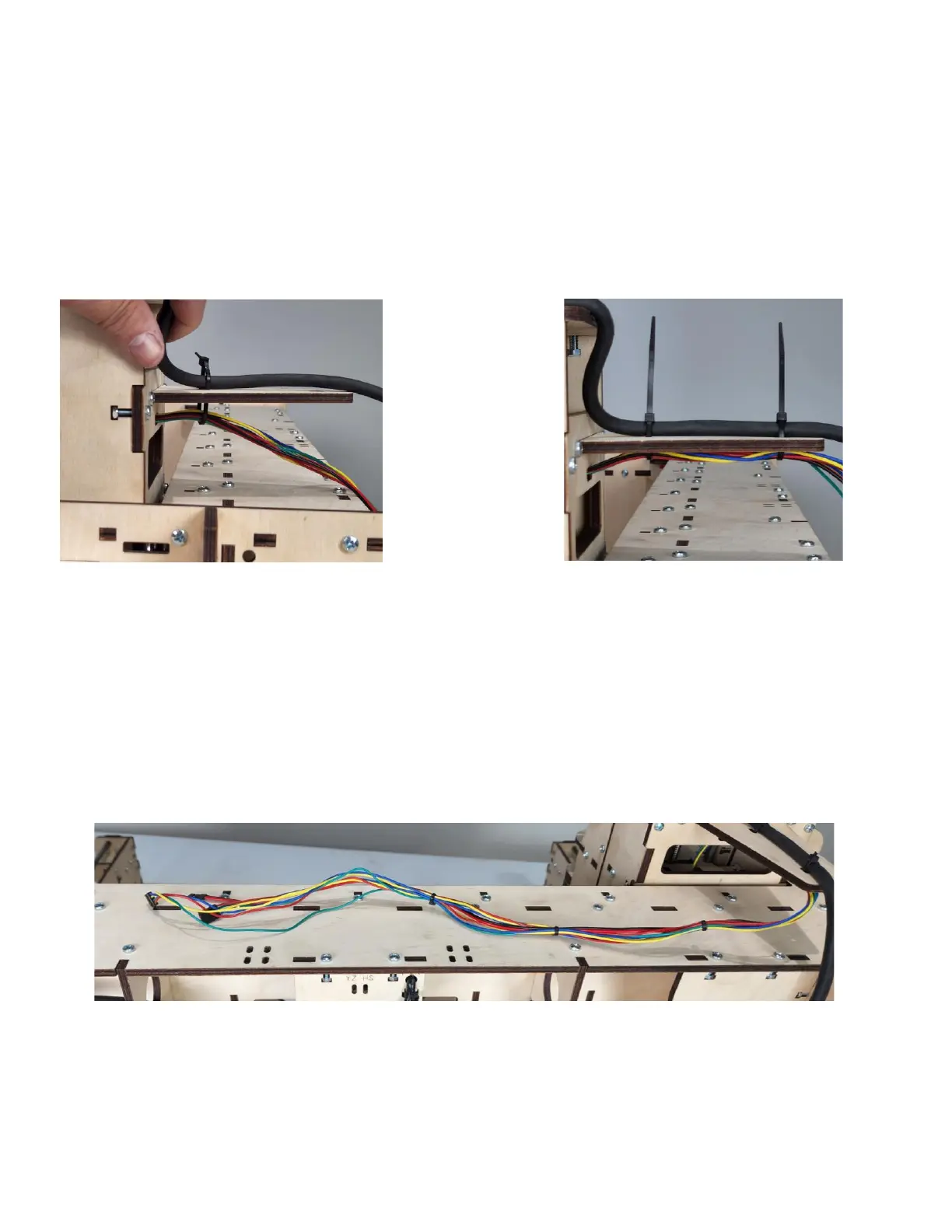

Step 9b Secure the Makita Router cord, the

Y Home Switch, Y Stepper Motor

and Z Stepper Motor wires across

the bottom of the Carriage Top

Support, as shown.

Step 9c Continue bundling the Stepper

Motor and Home Switch wires

together with small zip ties spaced 4

to 5 inches apart.
