Boca Systems Lemur-S - 8.0 Standard Interface Pinouts; RJ12 Serial Connection Pinout; Available Printer Interface Options

15

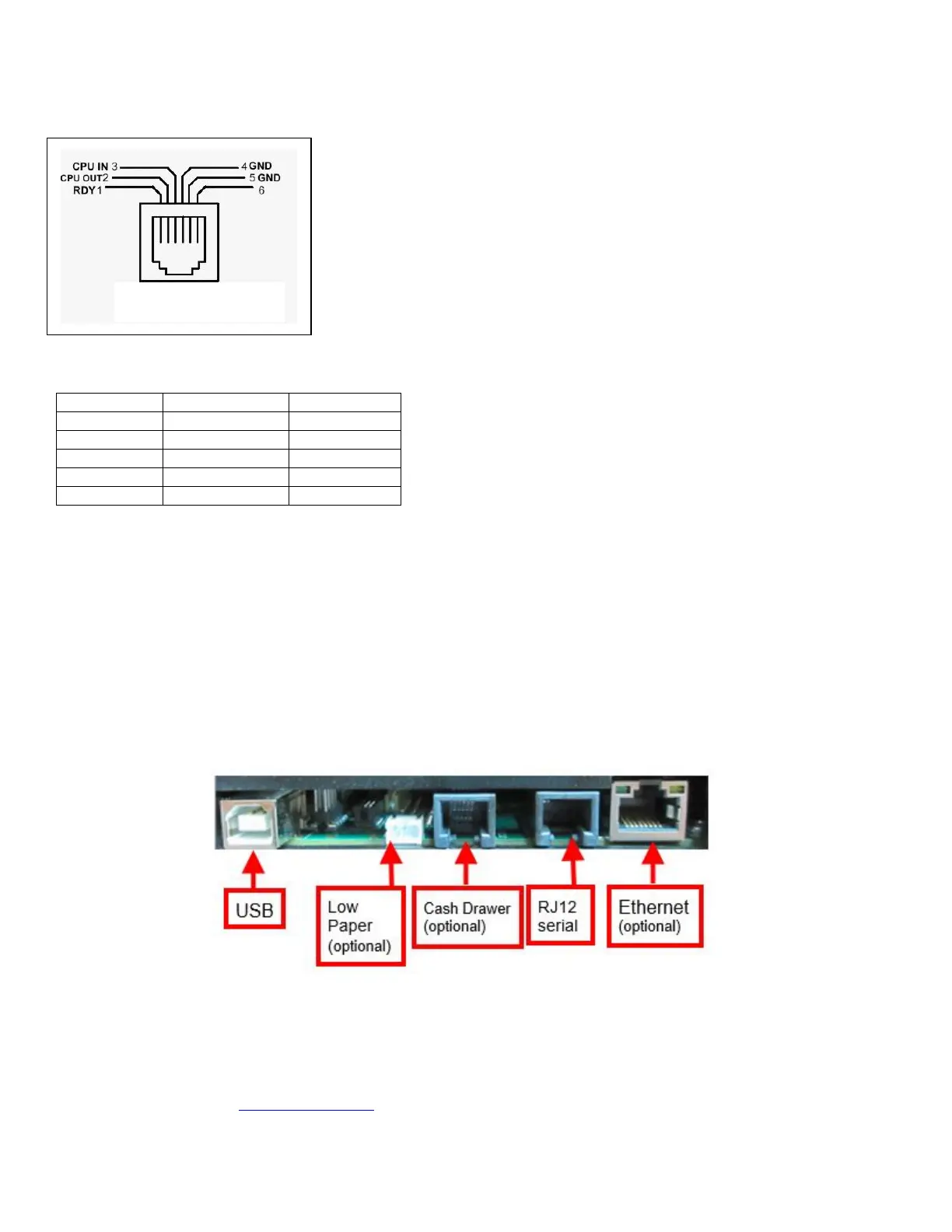

8.0 Standard Interface Pinouts
RJ12 Serial Connection
TYPICAL DB9 to RJ12 PIN CONNECTIONS
9 pin host
BOCA RJ12
2
2
Transmit
3
3
Receive
5
4
GND
6
1
RDY
8
6
CTS
USB USB 2.0 compliant devices.
ETHERNET (Optional) is a standard RJ45 Ethernet cable connection.
WI-FI (Optional) Support 802.11b/g/n Wi-Fi router. On dual-band router our printer needs be configured for the 2.4GHz
band.
BLUETOOTH (Optional) Allows connection via Bluetooth interface.
Click here to return to > Table of Contents
+5VDC
RJ12 Connector
