Display and Operation 4.2 Description of the Displays and Navigation
Page 16 BOGE base control for scroll compressors
Additional Displays
Additional displays can be called up on the control from the main display using
the Info key . The meaning of these displays is described in the table below.

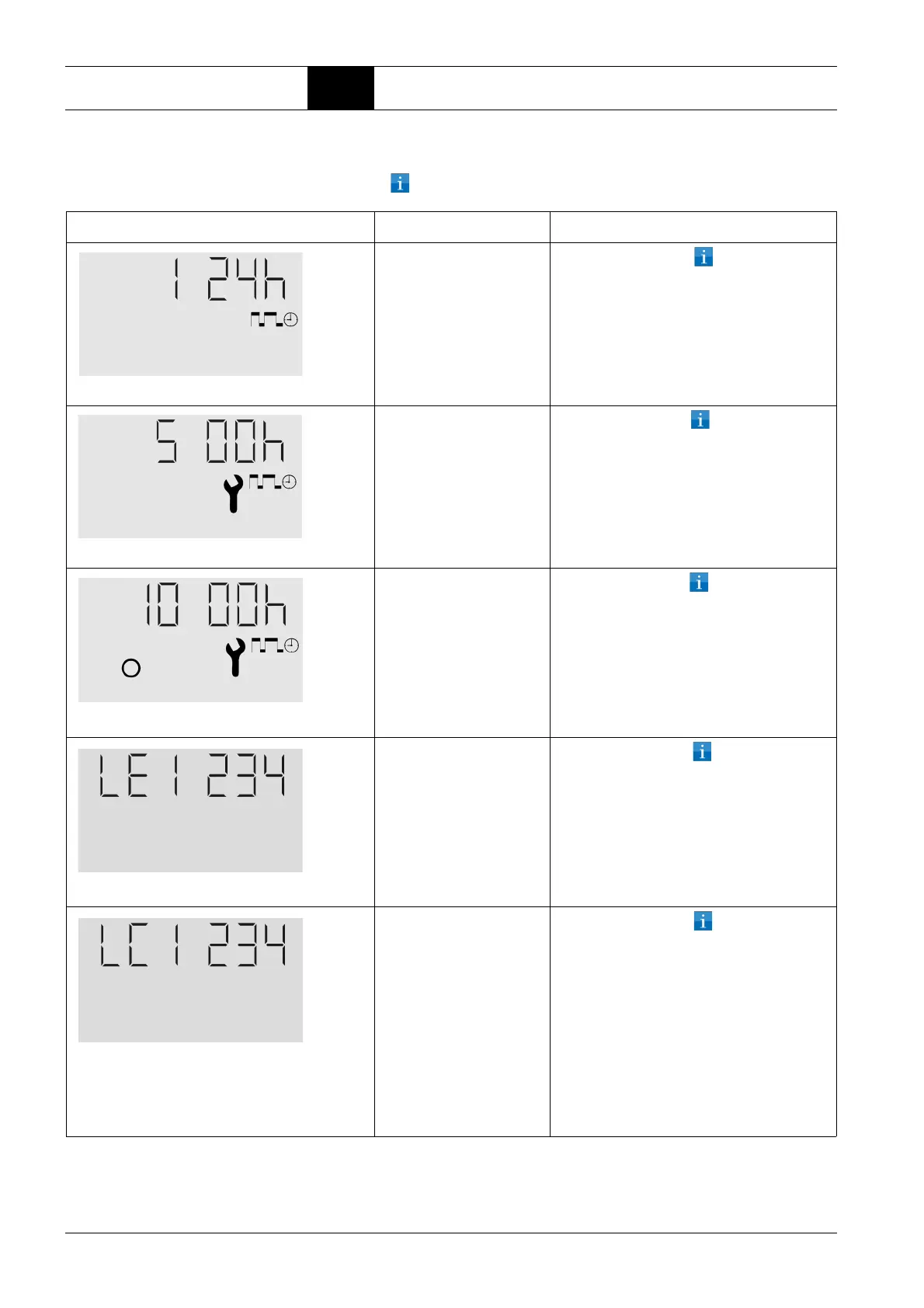

Display View / Meaning Display Operation / Explanation
means: 124 h total running time
Operating hours ● Press the Info key (on the main dis-
play).
The "Operating hours" display appears,
together with the total running time sym-
bol.
The seven-segment display shows the
total operating hours counter in hours.
means: 500 h until next compressor servicing
Compressor servicing
interval
● Press the Info key twice (from the main
display).
The "Compressor servicing interval"
display appears, together with the
servicing and total running time symbols.
The seven-segment display shows the
servicing countdown counter in hours.
means: 1000 h until next motor servicing
Motor servicing interval ● Press the Info key three times (from the
main display).
The "Motor servicing interval" display
appears, together with the circle symbol
O (stands for motor here) and the ser-
vicing and total running time symbols.
The seven-segment display shows the
servicing countdown counter in hours.
Single leakage
measurement
● Press the Info key four times (from the
main display).
The "Single leakage measurement"
display appears, indicated by the letters
LE.
The seven-segment display shows the
value for the load run hours per year
caused by leakage.
Continuous leakage
measurement
● Press the Info key five times (from the
main display).
The "Continuous leakage measure-
ment" display appears, indicated by the
letters Lc or LC.
The seven-segment display shows the
value for the load run hours per year
caused by leakage.
If the letters LC are displayed, continu-
ous measurement has already been
carried out for over a week.
