To adjust the choke lever resistance,
lift the rubber bellows then screw the
choke lever nut with your fingers. Do
not torque excessively because the
choke lever won't move easily. Put
back the rubber bellows in its original
position.
12) Auxiliary Headlamp
The auxiliary headlamp is located on
the steering pod. This lamp turns on
only when the HI intensity is selected.
13) Fuel Tank Cap
Unscrew counterclockwise and re-
move cap to allow fuel tank filling then
fully tighten clockwise.
WARNING
Always stop engine before refu-
eling. Open cap slowly. If a dif-
ferential pressure condition is no-
ticed (whistling sound heard when
loosening fuel tank cap) have ve-
hicle inspected and/or repaired
before further operation. Fuel is
flammable and explosive. Never
use an open flame to check fuel
level. Never smoke or allow flame
or spark in vicinity. Always work
in a well-ventilated area. Never
top off the fuel tank before plac-
ing the vehicle in a warm area.
As temperature increases, fuel ex-
pands and may overflow. Always
wipe off any fuel spillage from the
vehicle.

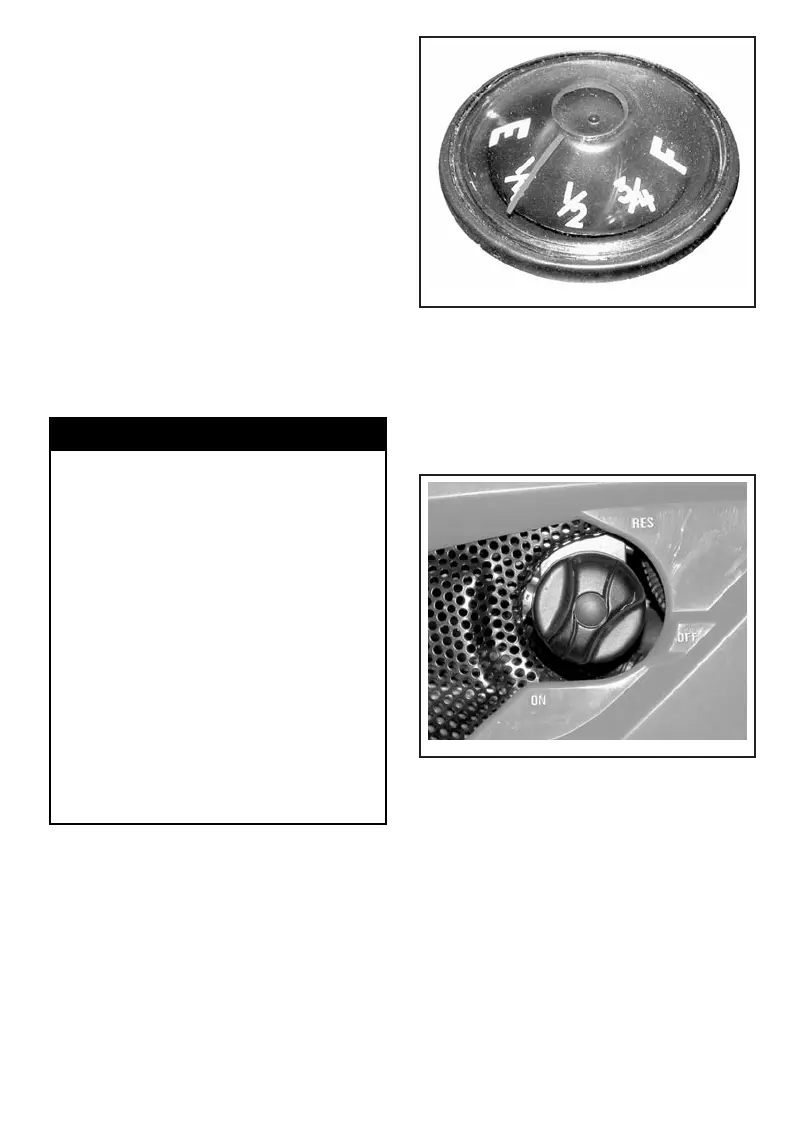

14) Fuel Gauge
Located under cluster, the gauge
shows an approximate amount of the
fuel in tank.
V04F0VY
15) Fuel Valve
Located on left side panel under front
part of seat. This is a 3-position rotary
valve: OFF, ON, RES. Rotate the knob
to align its pointer with ON, OFF or
RES.
V04A1NY
TRAXTER MAX CVT
_____________________
99
