On some occasions, it may be useful
or necessary to manually change the
gear selection. The electronic module
will allow the rider to override the au-
toshift mode by pressing the shift but-
ton to a lower gear or a higher gear.
The autoshift mode will be kept and
the shifting sequence will resume af-
ter shift is performed.
However, if the vehicle is used in
severe conditions, it is highly recom-
mended to use the manual mode (use
the gear shift button).

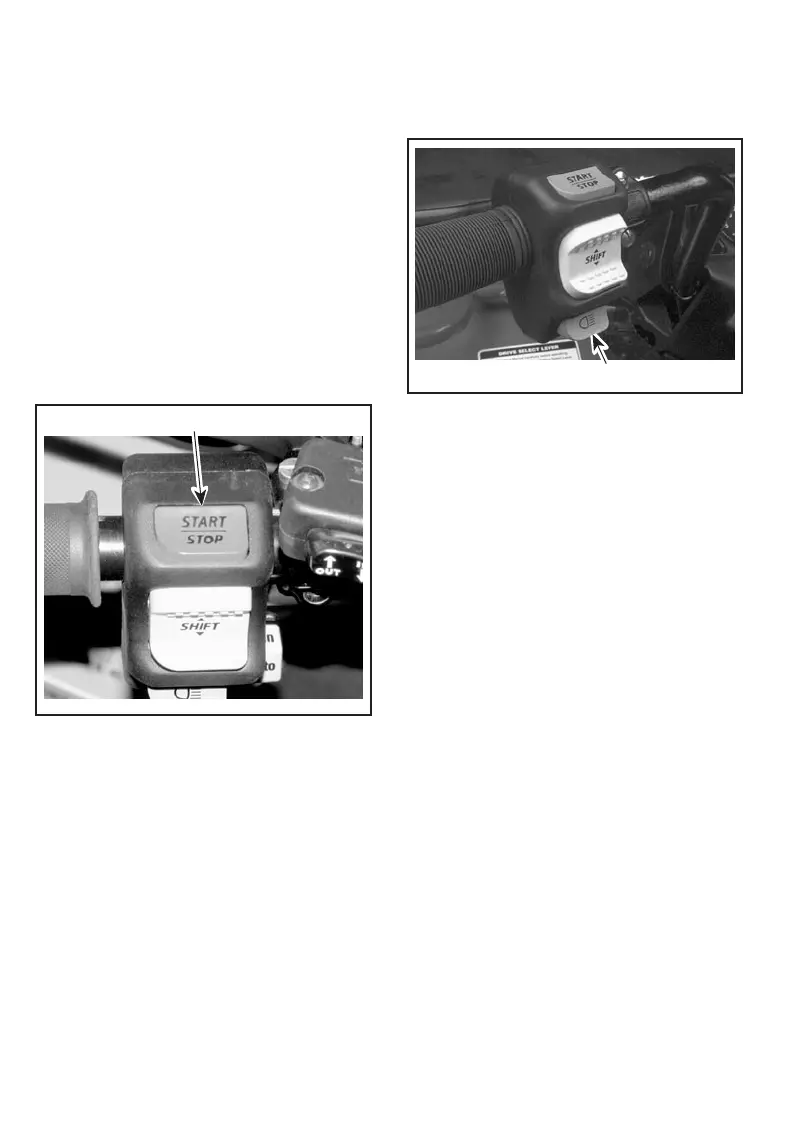

Start/Stop Switch
Located on top of the multi-function
switch. Dual function switch.
V01A63Y
1
1. Start/stop switch
To start engine, press and hold the
switch. Release immediately after en-
gine is started.
To stop engine, fully release throttle
lever then press the switch. It is not
necessary to hold the switch.
NOTE: While engine can be stopped
by turning ignition key OFF, we recom-
mend the engine be stopped by press-
ing the start/stop switch.
Headlamp Dimmer Switch
Located under the electric gear shift
button. Toggle type switch. It allows
selection of headlamp intensity.
V01I070
1
1. Headlamp dimmer switch
7) Indicator Lights
Cluster
Traxter MAX 5 SPEED
NOTE:
When first turning switch to
ON (either position), all indicator lights
will turn on for a brief moment. This
validates their operation. Thereafter,
only the lights that are activated will
remain .
NOTE: Temperature light stay on un-
til the engine runs.
If all lights flash, it indicates a particu-
lar malfunction of the transmission or
the electrical system. See an autho-
rized Bombardier ATV dealer as soon
as possible.
Gear Position Display
Located on left side of cluster. It lights
up to indicate the gear position when-
ever the ignition switch is turned
on when the transmission lever is
NOTinPARKorinNEUTRALposition
(whether or not engine is running).
94
