V04L02Y
2
1

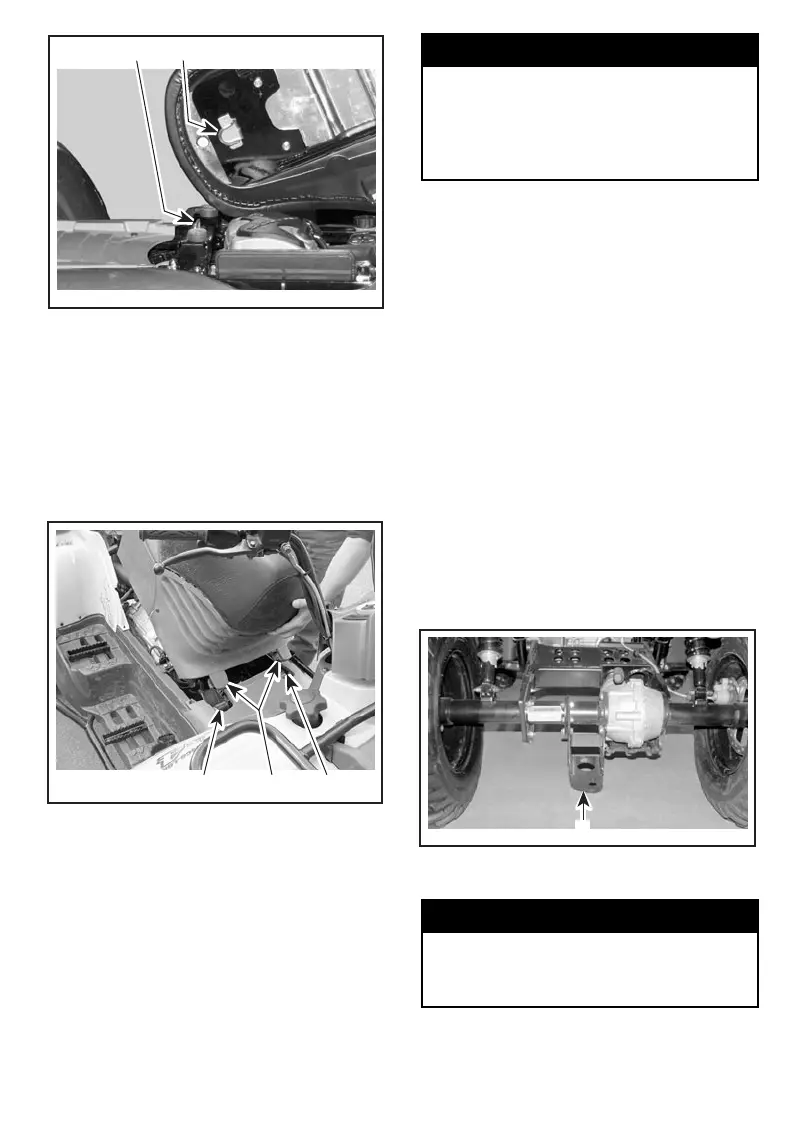

1. Insert this tab in hook
2. Hook
Traxter MAX 5 SPEED
Place seat to allow the insertion of
the U-shaped bracket over the rollers.
Gently slide the brackets over rollers
then lower seat. When seat rests in
its position, firmly push seat down to
latch.
V01A46Y
2 21
1. U-shaped bracket
2. Rollers
22) Cargo Racks
Located on top of chassis at front and
rear. Convenient racks to carry gear.
WARNING
Ensure to properly secure material
to rack. Do not overload. Ensure
load does not interfere with visi-
bility and/or steering. Do not carry
passenger(s).
Refer to SPECIFICATIONS for carry-
ing loads and cargo weight distribution
recommendations.
23) Air Duct
Located on rear fenders. They force
the flow of air to cool radiator and sup-
ply air inside air box.
CAUTION:
Do not place anything
over air intake ducts.
24) Trailer Hitch
Located on rear axle. Convenient
hitch to install a ball to tow a trailer or
other equipment. Install the proper
ball size as per trailer manufacturer
recommendations. Refer to SPEC-
IFICATIONS for carrying loads and
towing recommendations.
V00A2KY
1
TYPICAL
1. Trailer hitch
WARNING
Be sure to install the proper ball
size that matches the equipment
you will tow.
_____________________
103
