17) Rewind Starter Handle
Traxter MAX 5 SPEED
The rewind starter handle is provided
as an emergency starting device.
Follow the usual starting procedure;
but use the rewind starter instead of
the electric starter.
Located on left side panel under front
part of seat. Auto-rewind type. To en-
gage mechanism, pull handle slowly
until a resistance is felt then continue
to slowly pull the handle until the com-
pression stroke peak (strong rotating
resistance) is passed, then pull vigor-
ously. Slowly release handle.
V01C3LY
1

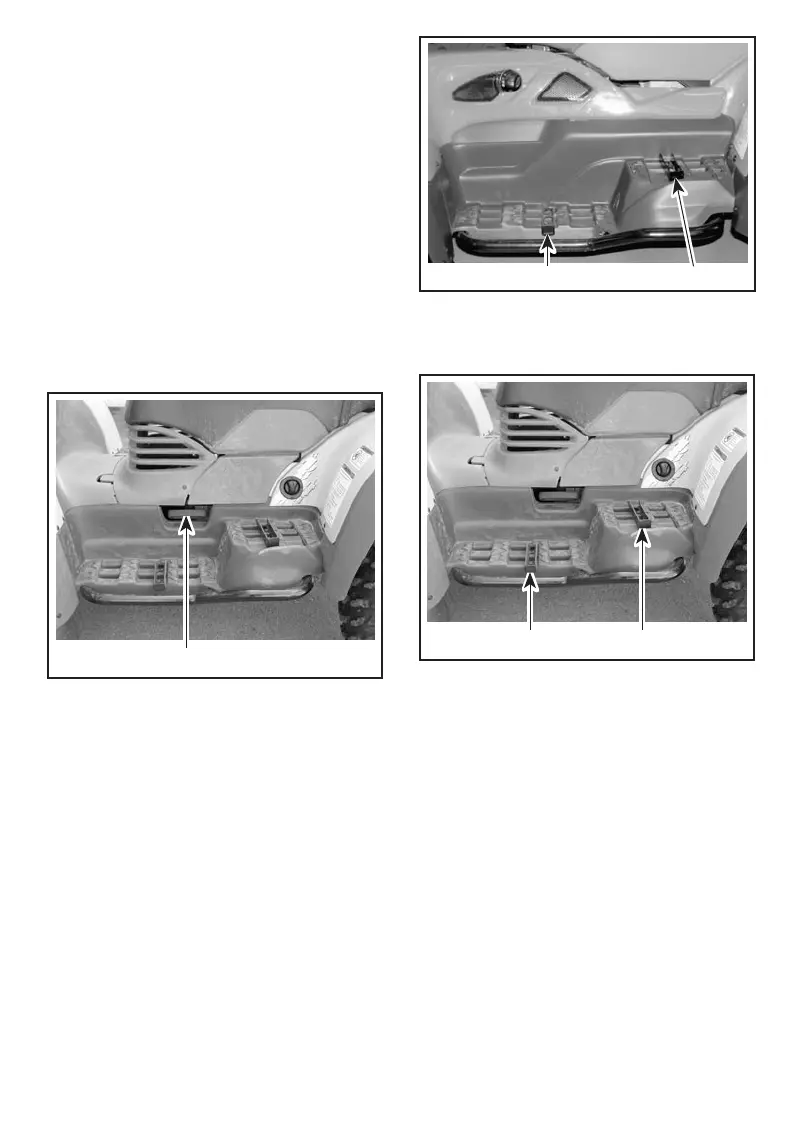

1. Rewind starter handle
18) Footpeg
Located on footrest. Use this area to
keep your feet stable.
V04A1RY
1 2
TRAXTER MAX CVT
1. Operator's footpeg
2. Passenger's footpeg
V01A43Z
1 2
TRAXTER MAX 5 SPEED
1. Operator's footpeg
2. Passenger's footpeg
19) Storage Compartment
Located in front of vehicle. Conve-
nient location to carry personal arti-
cles such as an a helmet, spare spark
plugs, first aid kit, etc. Unlatch cover,
gently lift then remove cover.
The compartment is equipped with a
drain plug under the tool box. Remove
plug to allow draining when necessary.
Reinstall plug when finished.
_____________________
101
