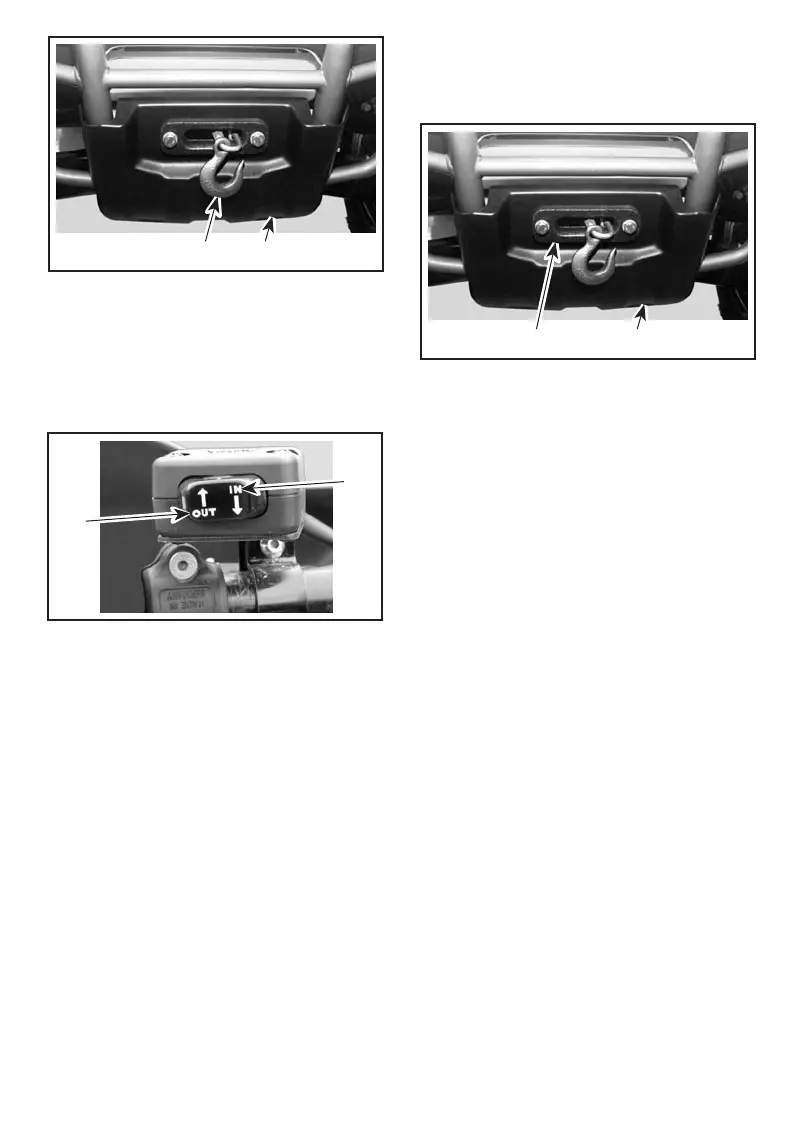

1. Winch
2. Front skid plate
29) Winch Control Switch
(if so equipped)
Located on the LH side of the handle-
bar, near multi-function switch.
V04A15Y
2
1
1. In
2. Out
To take out wire rope from winch,
press the left side of switch.
To get wire rope into the winch, press
the right side of switch.
Refer to ATV Winch Operator's Man-
ual for more informations concerning
the instructions for use the winch
safely.
30) Fairlead
(if so equipped)
Located on the front skid plate.
2
V01A1OZ
1
1. Front skid plate
2. Fairlead
The fairlead is used to prevent the
damages to the vehicle and guide the
wire rope into the winch.
