Follow manufacturer's instructions for
proper attachment.

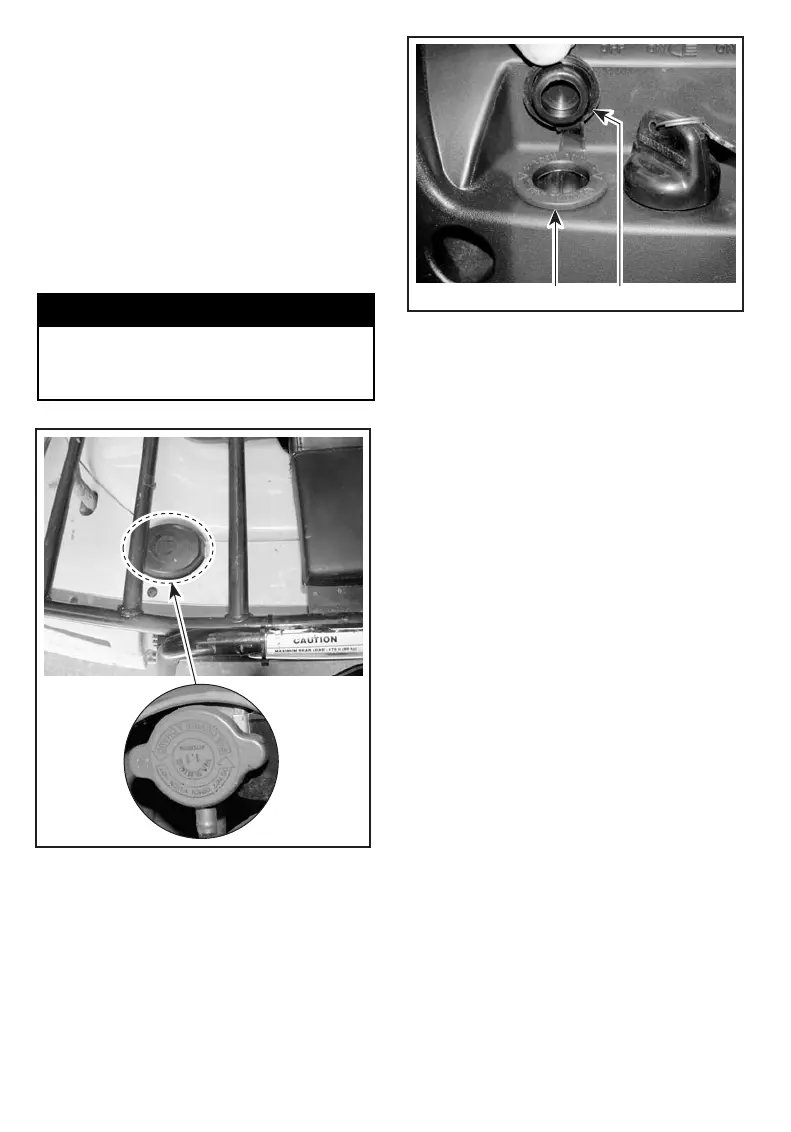

25) Radiator Cap
Located at rear of rear panel. It pro-
vides access to the radiator filling
neck.
Pull the protector cap to give access to
the radiator cap. When finished, prop-
erly reinstall radiator cap then protec-
tor cap.
WARNING
In order to avoid potential burns,
do not remove the radiator cap if
theengineishot.
V01A48Y
26) 12-Volt Power Outlet
It is located beside ignition key on of
cluster.
V00A2LY
2
1
TYPICAL
1. Protective cap
2. Power outlet
Convenient for handheld spotlight or
other portable equipment.
Remove cap to use. Always reinstall
protective cap after use to protect
against weather.
Do not exceed the rating capacity.
See SPECIFICATIONS.
An auxiliary supply is available to
connect additional accessories. Two
wires are hidden in the wiring harness
at the rear of vehicle. See an autho-
rized Bombardier ATV dealer for more
details.
27) Fuses
The electrical system is protected with
fuses. Refer to MAINTENANCE for
details.
28) Winch (if so equipped)
Located behind front skid plate.
104
