WARNING
ConnectRED(+)cablefirstthen
BLACK (-) cable. Always connect
RED (+) cable first.
NOTE: Place the RED (+) cable be-
tween holding straps and battery.
Fuses
If a fuse is damaged, replace it by one
of the same rating.
CAUTION:
Do not use a higher
rated fuse as this can cause severe
damage.

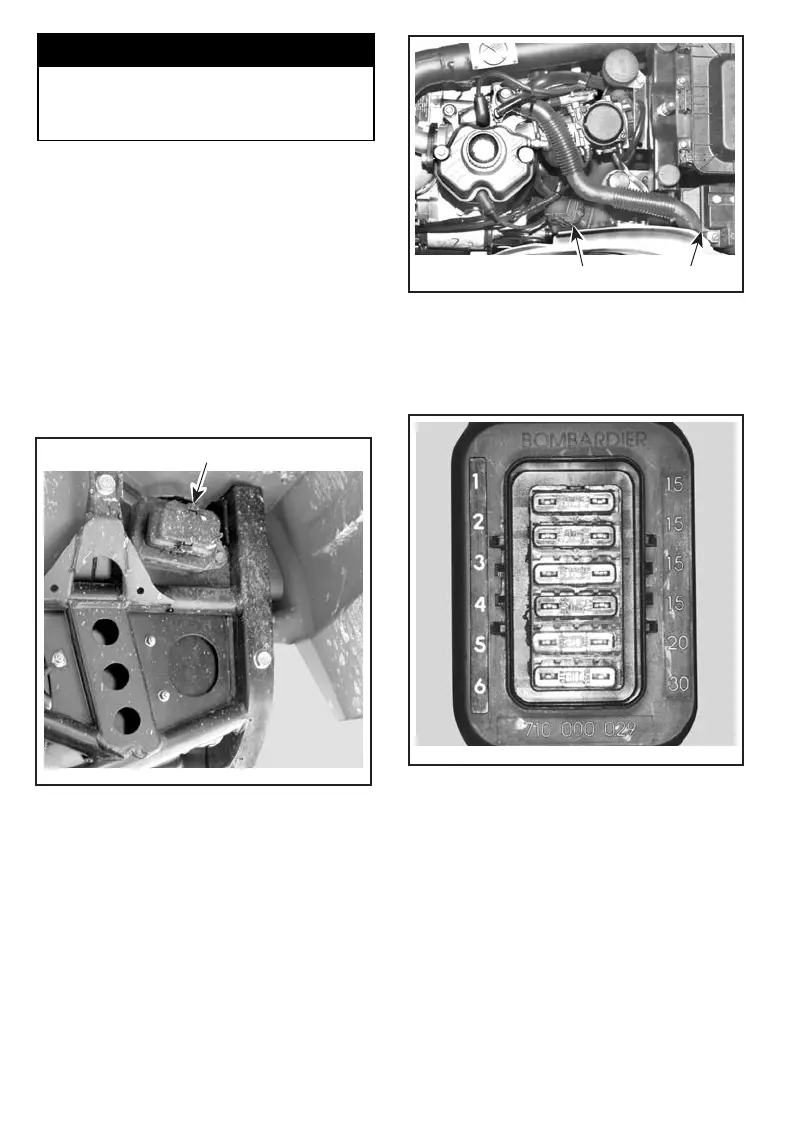

On
Traxter MAX CVT
, the fuse holder
is located at the rear of the vehicle, on
left side, under rear fender.
V04G1KY
1
TRAXTER MAX CVT
1. Fuse holder
On
Traxter MAX 5 SPEED
,thefuse
holder is located in engine compart-
ment on LH side of battery.
V01G13Y
21
TRAXTER MAX 5 SPEED
1. Battery
2. Fuse holder
Fuses are identified by a number lo-
cated beside the fuse.
V00G01Y
TRAXTER MAX CVT
1. Spare
2. Spare
3. Accessories (power outlet and
auxiliary supply)
4. Fan
5. Main
6. Charging system
136
