TRAXTER MAX 5 SPEED

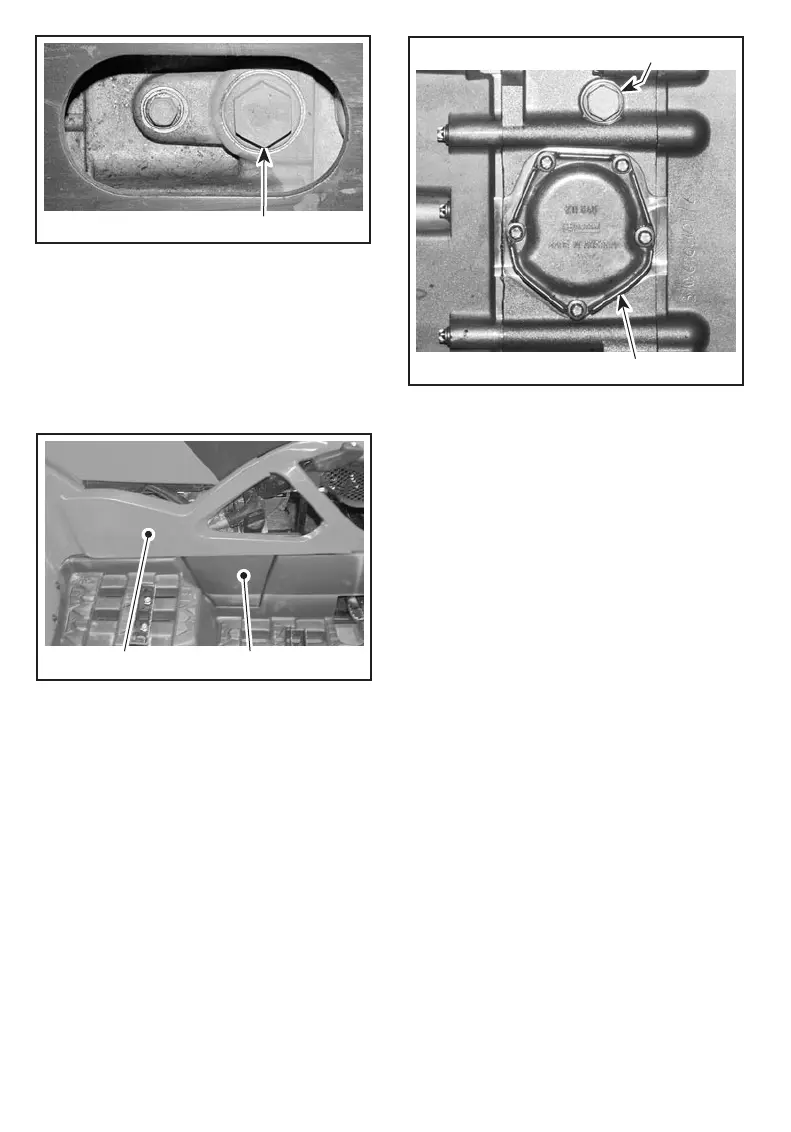

1. Oil drain plug
Allow enough time for oil to flow out
of oil filter.
Traxter MAX CVT
Remove the RH side panel then the
door in the footrest.
V04L1KY
1 2
1. Side panel
2. Footrest door
Unscrew the oil filter cover.
Remove the oil filter and replace with
a new filter.
NOTE: Check the cover O-ring and
change it if necessary.
Wipe out any oil spillage on engine.
Remove skid plate.
Remove oil strainer cover and oil col-
lector, located near drain plug, then
clean oil strainer.
V04C09Y
1
2
1. Oil strainer cover
2. Oil plug
Traxter MAX 5 SPEED
Carefully unscrew oil filter and as soon
as it can be removed from the engine,
turn it upright. Discard filter.
NOTE: Be sure that the old filter
O-ring is removed.
CAUTION:
Only use Bombardier
high pressure filter or suitable
equivalent. The Bombardier filter
is specifically designed for this en-
gine. This filter does not operate at
the same pressure as other brands.
Using a non-recommended filter
may cause serious engine/trans-
mission damage. See an autho-
rized Bombardier ATV dealer.
Lubricate the O-ring on the filter with
engine oil. Install the new filter then
screw one full turn after O-ring con-
tact.
Wipe out any oil spillage on engine.
Remove skid plate.
Remove oil strainer cover and oil col-
lector, located near drain plug, then
clean oil strainer.
