V07I0HY
1

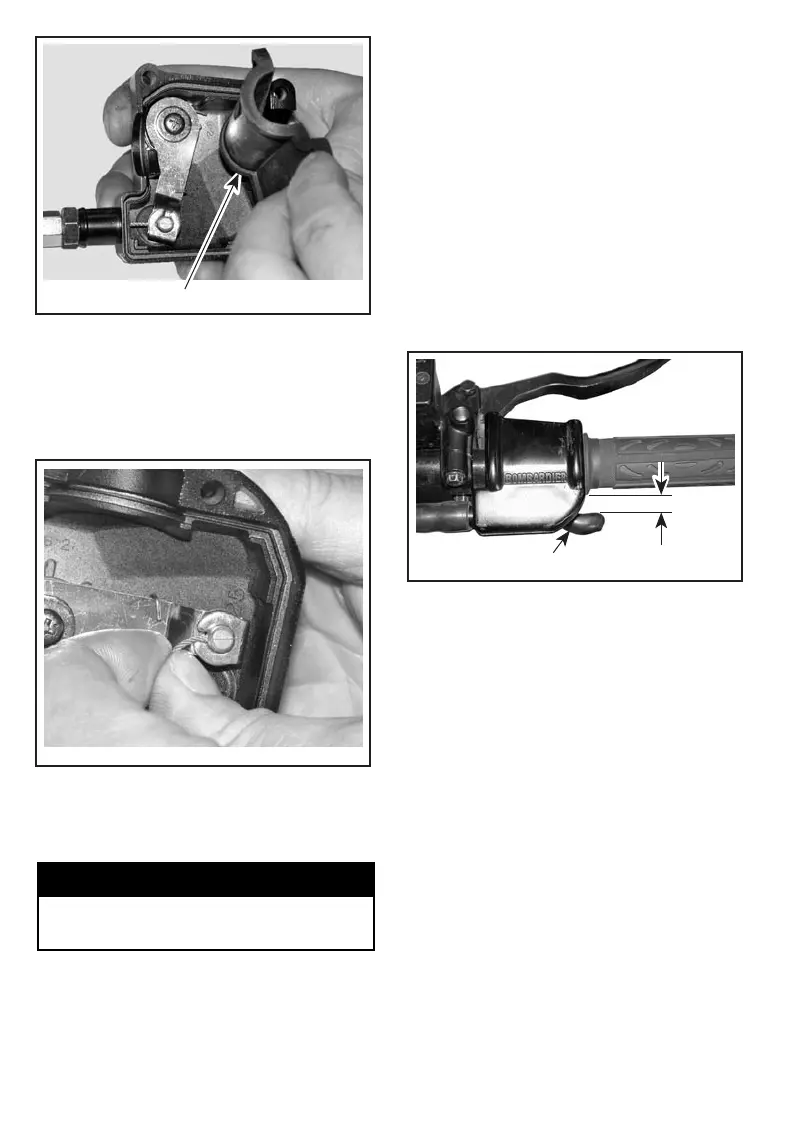

1. Inner housing protector
– the cable from the throttle lever
housing.
NOTE: Slide cable in clip slot and
remove the end of cable from clip.
V07I0IY
Remove the carburetor side cover.
Insert the needle of spray can in the
end of throttle cable adjuster.
WARNING
Always wear eye protection and
gloves when you lubricate a cable.
NOTE: Place a rag around the throttle
cable adjuster to prevent the lubricant
splash.
Add lubricant until it runs out at carbu-
retor end of the throttle cable.
Reinstall and adjust the cable.
Throttle Lever Adjustment
Slide rubber protector back to expose
throttle cable adjuster.
Loosen lock nut then turn the adjuster
to obtain correct throttle lever free
play.
NOTE: Measure throttle free play at
the tip of throttle lever.
Tighten lock nut and reinstall protector.
V01I1VY
1
A
1. Throttle lever
A. 3 to 6 mm (1/8 to 7/32 in)
With the transmission lever on PARK
position, start the engine. Check if
the throttle cable is adjusted correctly
by turning handlebar fully right then
fully left. If the engine RPM increases,
readjust the throttle lever free play.
Suspension
Lubrication
A-Arms
Lubricate front A-arms. Use suspen-
sion synthetic grease (P/N 293 550
033) or an equivalent. There are two
grease fittings on the upper A-arm and
two on the lower A-arm (underneath).
142
