V01A08Y
1

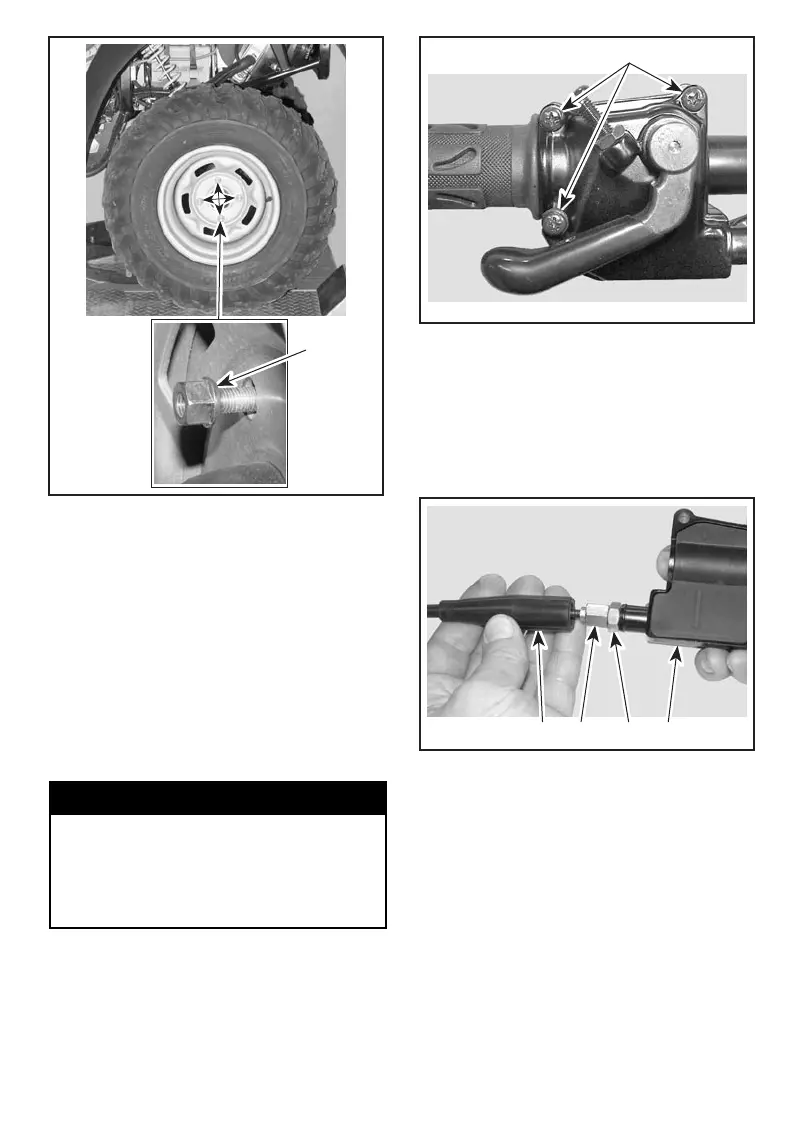

1. Taper side of nut
CAUTION:
Always use the recom-
mended wheel nuts (P/N 705 400
013). Using a different nut could
cause damages to the rim.
Steering System
Throttle Cable Lubrication
The throttle cable must be lubricated
with silicone lubricant (P/N 293 600
041) or an equivalent.
WARNING
Always use a silicone-based lubri-
cant. Using another lubricant (like
a water-based lubricant) could
cause the throttle lever/cable stick-
ing or stiffness.
Open the throttle lever housing.
V07I0FY
1
1. Remove these screws
Separate the housing. Slide rubber
protector back to expose throttle ca-
ble adjuster.
Unscrew the locking nut of the cable
adjuster then screw in the adjuster to
release the cable tension.
4
V07I0GY
321
1. Cable protector
2. Throttle cable adjuster
3. Lock nut
4. Throttle lever housing
Remove:
– inner housing protector
_____________________
