V01L07Y
12
TYPICAL

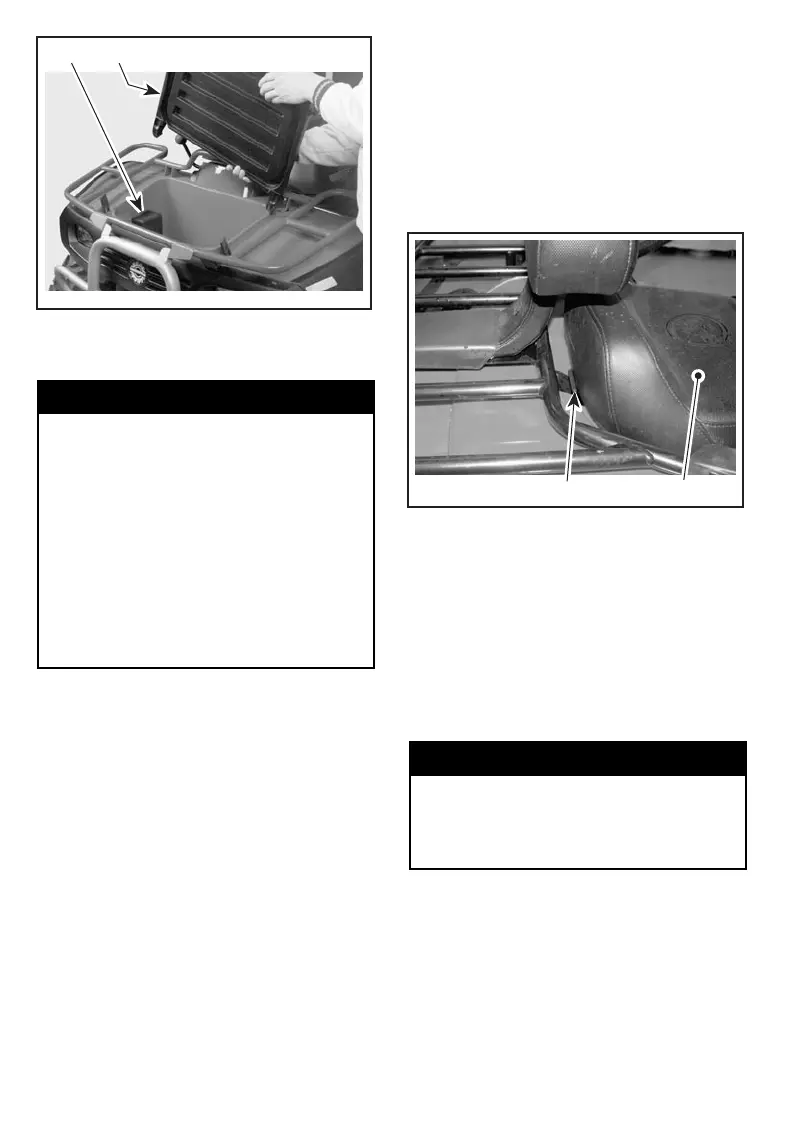

1. Removing cover
2. Tool box
WARNING
When engine is running, always
engage the PARK position on the
transmission lever before opening
cover. Never leave any heavy or
loose breakable objects in the stor-
age basket. Always latch cover be-
fore riding. If storage cover is re-
moved to provide greater carrying
area, ensure that cargo is secured
and will not “fly out” when riding
atspeedonroughterrain. Slow
down.
20) Tool Box
The tool box is located in the stor-
age compartment and it contains tools
for basic maintenance, this Operator's
Guide and a Winch Operator's Manual
with the
XT models
.
The tools included in the tool box are:
– pliers (1)
– screwdriver (1)
– open wrench 10/13 mm (1)
– open wrench 15/17 mm (1)
– socket wrench 10/13 mm (1)
– socket wrench 16/18 mm (1)
– tire pressure gauge (1)
– Allen key 3 mm (1)
– fuse 30 A (1)
– fuse 20 A (1)
– fuse 15 A (1).
21) Seat Latch
Located underneath rear end of seat.
It allows the removal of seat to give
access to engine compartment.
V01A5AY
2
1
1. Seat
2. Seat latch
Seat Removal
Pull latch upward while gently lifting
rear of seat. Continue lifting move-
ment until you can release the front
retaining devices then completely re-
move seat.
Seat Installation
WARNING
Periodically verify the seat lock pin
and tighten if needed. Make sure
seat is securely latched before rid-
ing.
Traxter MAX CVT
Insert front tab of seat into frame
hook. When seat rests in its position,
firmly push seat down to latch.
102
