V04C20Y 1

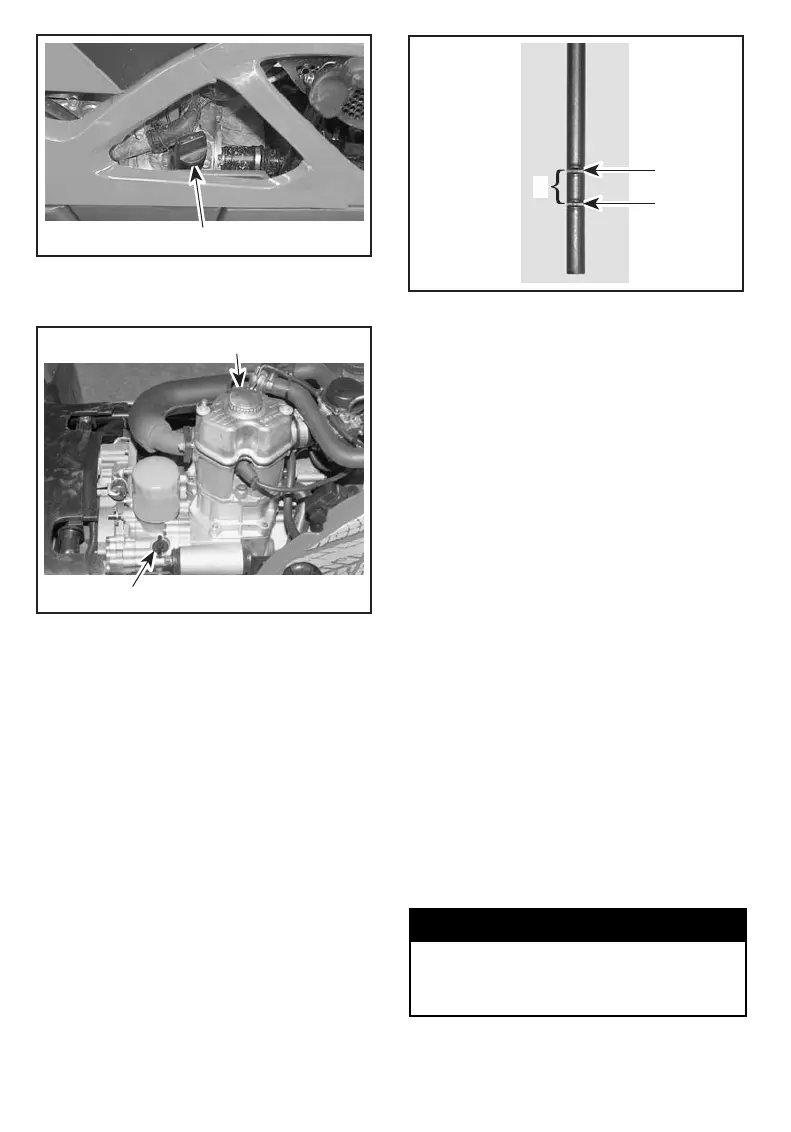

TRAXTER MAX CVT — RH SIDE OF ENGINE
1. Dipstick
V01C02Y
2
1
TRAXTER MAX 5 SPEED — LH SIDE
OF ENGINE
1. Dipstick
2. Filler cap
With vehicle on a level surface and
engine cold, not running, check the oil
level as follows:
1. Remove the dipstick and wipe
clean.
2. Reinstall dipstick. The dipstick
must be insert properly and com-
pletely.
3. Remove the dipstick again and
check oil level. It should be near
or equal with the upper mark.
V00C01Y
1
2
3
TYPICAL
1. Full
2. Add
3. Operating range
To add oil, remove the dipstick (
Trax-
ter MAX CVT
) or unscrew filler cap
(
Traxter MAX 5 SPEED
). Add a small
amount of oil and recheck oil level.
Repeat until oil level reaches the dip-
stick's upper mark. Do not overfill.
NOTE: Use a funnel to avoid spillage.
Properly reinstall the dipstick and/or
tighten filler cap then reinstall seat.
Engine Coolant
Recommended Coolant
Always use ethylene-glycol antifreeze
containing corrosion inhibitors specifi-
cally for internal combustion aluminum
engines.
Cooling system must be filled
with Bombardier premixed coolant
(P/N 219 700 362) or with distilled
water and antifreeze solution (50%
water, 50% antifreeze).
Coolant Level
WARNING
Check coolant level with engine
cold. Never add coolant in cool-
ing system when engine is hot.
Remove seat.
