Via parameter
Technology Controller Release 58 the technology controller can be
halted. The P and D part remain at the value before switching off.
The output value
and the I part resets with each switching off of the Technology Controller Release
58.
The default assignment of parameter Start clockwise 68 to the logic signal of the
technology controller must be observed:
Start Clockwise
68 = 13 - Technology Controller Start.
This assignment may not be changed. The technology controller becomes active with
the controller release at digital input S1IND/STOA.

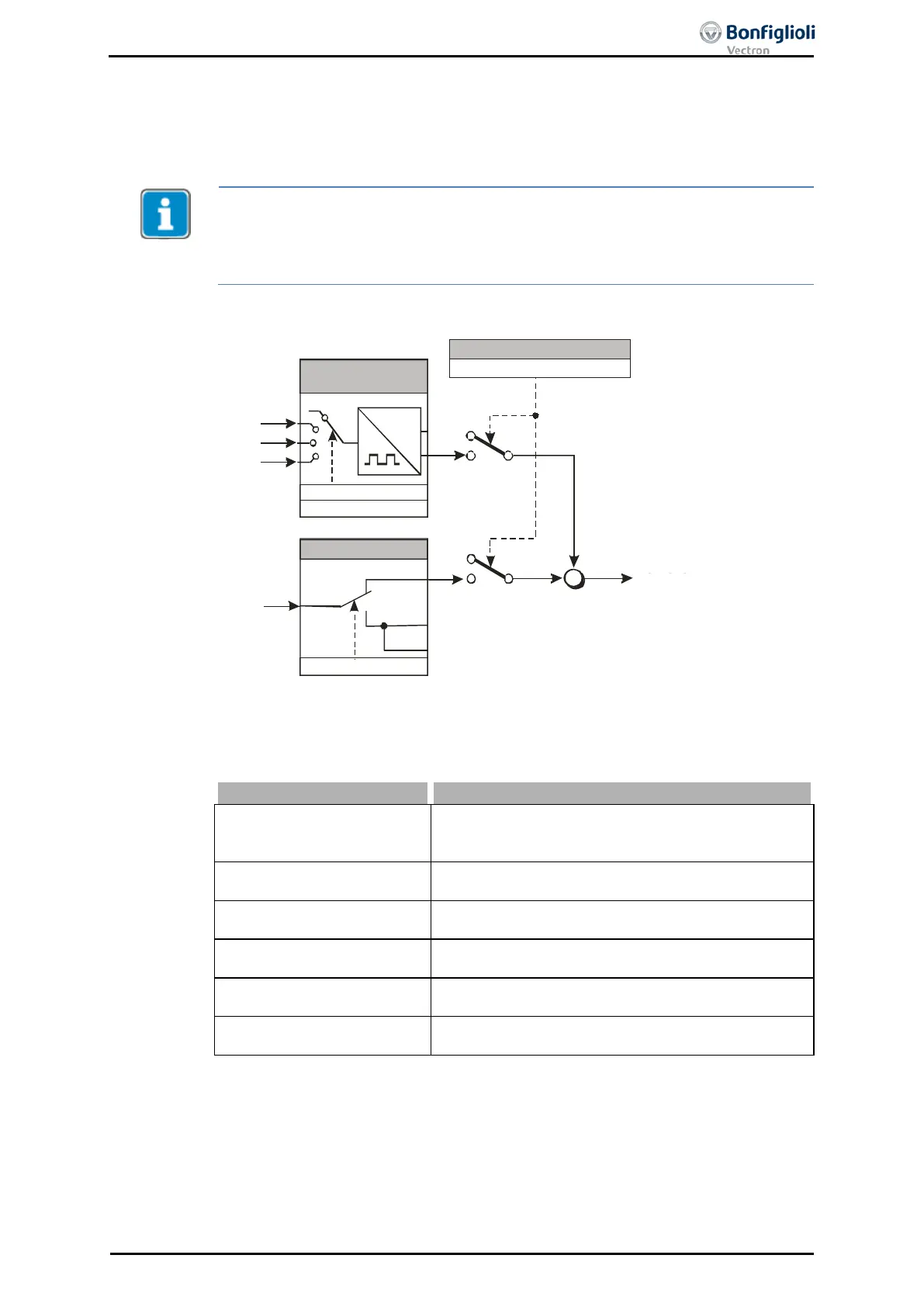

Structural image: Inputs for reference percentage source
+
0
1
F3
analog
digital
MFI1
0
1
MFI1A
Multifunctional Input
Operation mode 452
Repetition Frequency
Input
Operation mode 496
Devider 497
S2IND
S3IND
S6IND
0
%
f
Technology Controller
Actual Percentage Source 478
Istwerte:
Actual Percentage Value 230
The function selected via the parameter Operation mode 440 defines the behavior of
the technology controller.
Operation mode 440
Function
0 - off
The technology controller is switched off; the refer-
ence value specification is done via the reference
percentage channel.
1 - Standard
For pressure and volume flow control with linear op-
erating behavior and actual value monitoring.
2 - Liquid Level 1
Contents level control at defined motor speed with
actual value missing.
3 - Liquid Level 2
Contents level control at defined motor speed with
actual value missing or high control deviation.
4 - Speed Controller
Speed control with analog feedback of the actual
speed.
5 -
Indirect Volume Flow
Control
Volume flow control with square rooted actual value.
Actual values
06/13 Operating Instructions ACU 217
