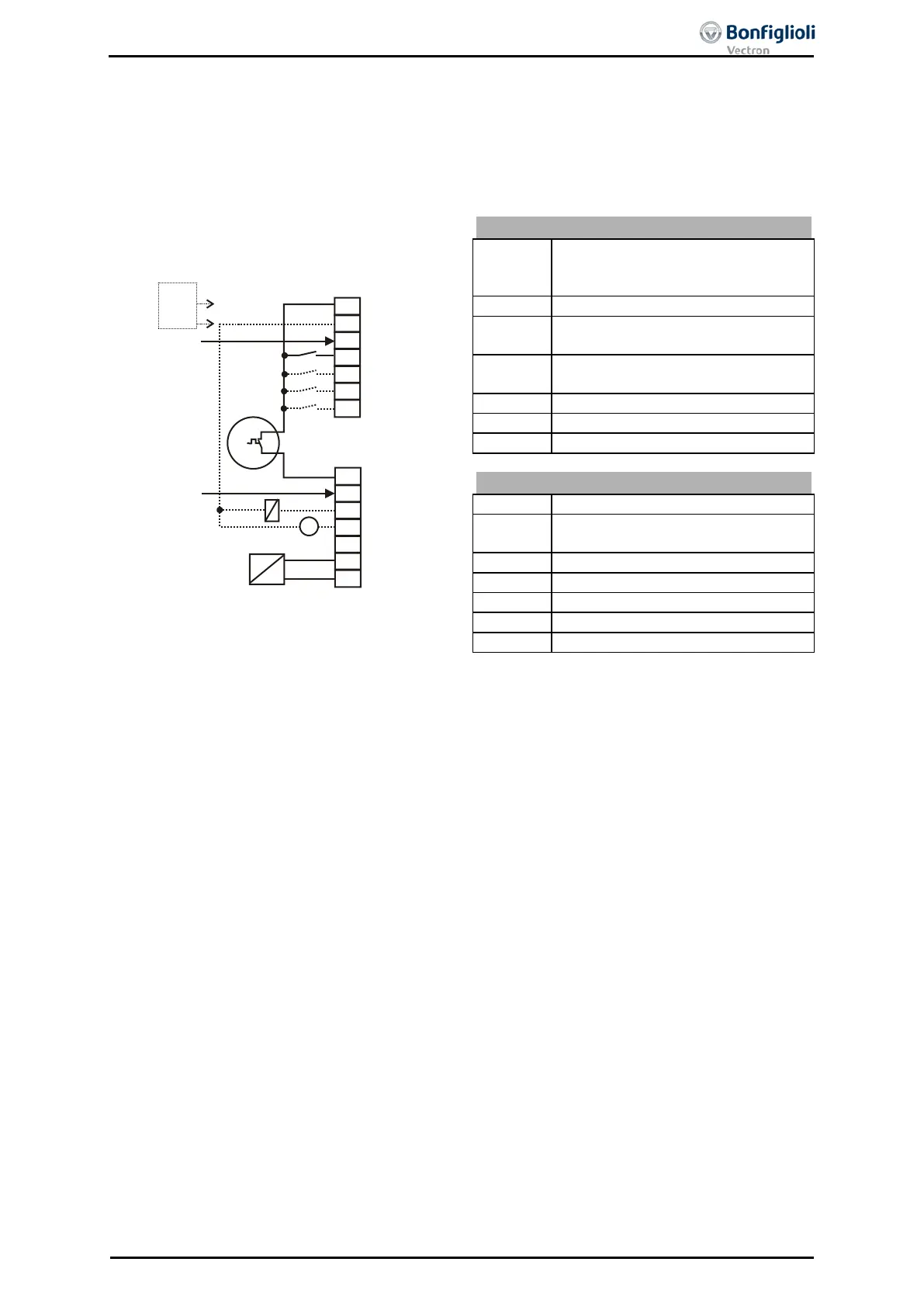

6.7.4 Configuration 411 – Sensorless Field-Oriented Control with Tech-
nology Controller
Configuration 411 extends the functionality of the sensorless field-oriented control of
Configuration 410 by a Technology Controller. The Technology Controller enables a
control based on parameters such as flow rate, pressure, filling level or speed.
Control terminal X210A
X210A.1
Voltage output +20 V or input for
external power supply DC 24 V
±10%
X210A.2
GND 20 V/ GND 24 V (ext.)
X210A.3
Digital input STOA (1st shutdown
path of safety function STO)
X210A.4
Fixed percentage value change-
over 1
X210A.5
no function assigned
X210A.6
Data set change-over 1
X210A.7
Data set change-over 2
Control terminal X210B
X210B.1
Motor thermal contact
X210B.2
Digital input STOB (2
nd
shutdown
path of safety function STO)
X210B.3
Run Signal
X210B.4
Analog signal of actual frequency
X210B.5
Supply voltage +10V
X210B.6
Actual percentage value 0 ...+10 V
X210B.7
Ground 10 V
S7IND
S1OUT
MFO1A
+10 V/4 mA
MFI1A
GND 10 V
1
2
3
4
5
6
7
X210A
+20 V/180 mA
GND 20 V
S1IND
S2IND
S3IND
S4IND
S5IND
S6IND
X210B
1
2
3
4
5
6
7
M
V
+
-
+
-
-
+
STOA
STOB
24 V
ext.
06/13 Operating Instructions ACU 77
