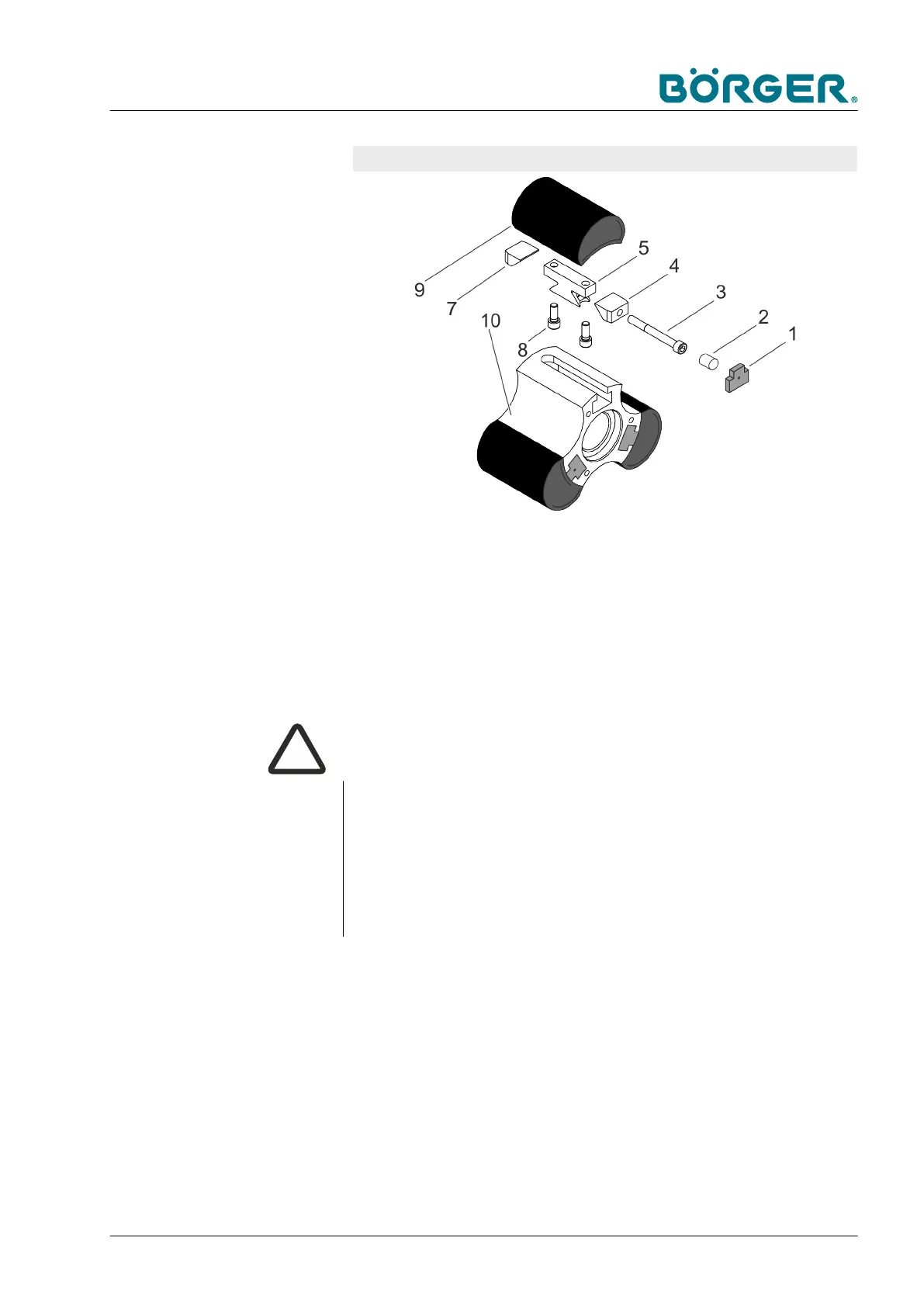

Linear rotors:
1 T-plug
2 Spacer (only on linear rotors for type
FL776)
3 Hexagon socket head cap screw
4 Clamping wedge
5 Clamping part
6 Auxiliary disassembly thread
7 Clamping wedge
8 Screws
9 Lobe tip, two parts in case of FL1036
10 Rotor body
NOTICE!
Risk of material damage when using wetted parts made of
non-suitable material!
Compare the quality symbol [b] on the lobe tips that describes the
material with the data sheet.
Only use lobe tips made from suitable materials.
