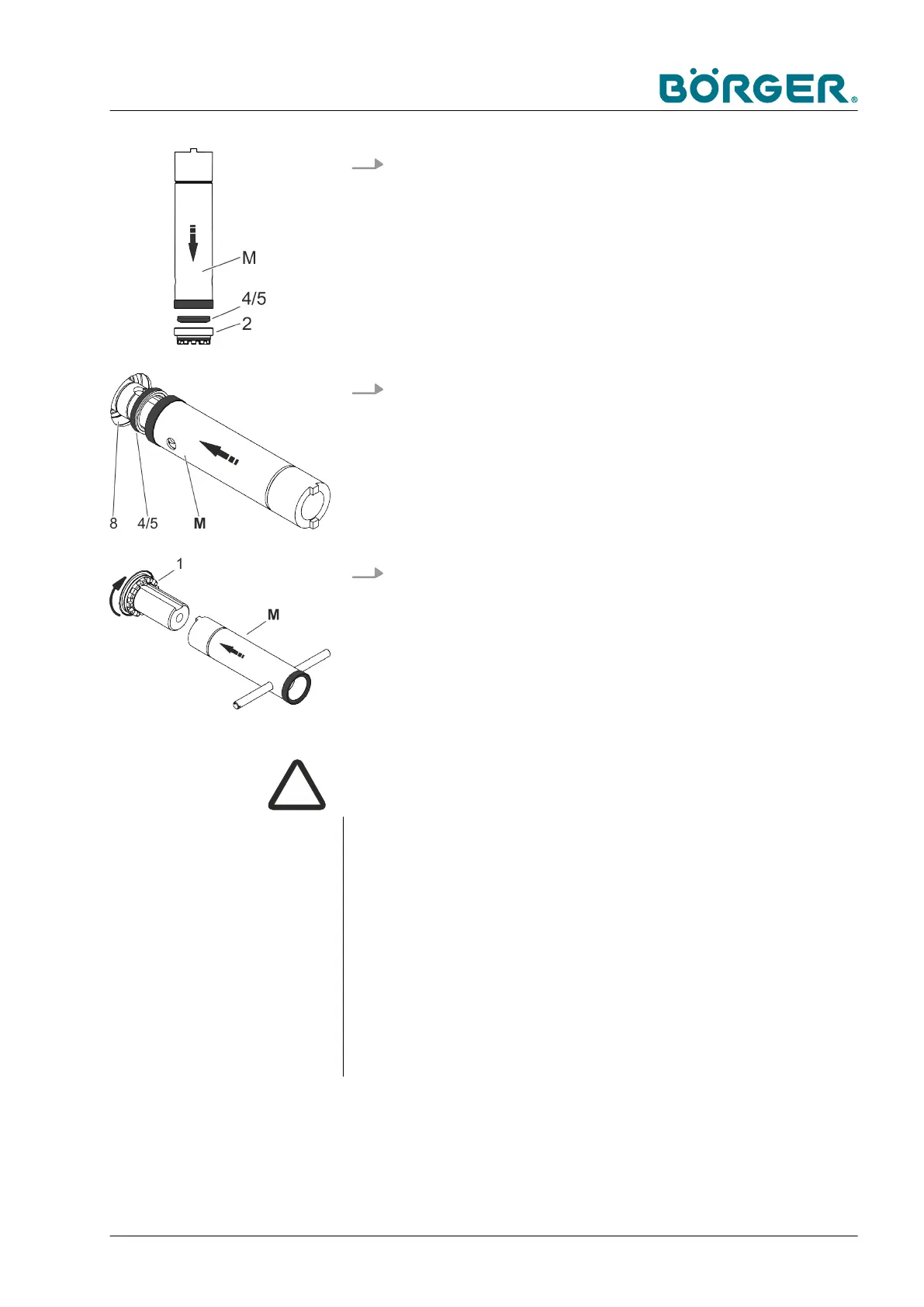

14. Press one seal face (4) with O-ring (5) into each rotating seal
holding bush (2) using the push-in tool for mechanical seals
(M).
15. Press both remaining seal faces (4) with O-rings (5) into the
stationary seal holding bushes (8) using the push-in tool for
mechanical seals (M).
16. Lightly coat the clean sealing surfaces [DF] of the seal faces
(4) with suitable oil.
NOTICE!
Risk of material damage if the rotating seal holding
bushes are installed incorrectly!
— First install one rotating holding bush with new mechan-
ical seal completely according to the following descrip-
tion and secure the bush with the parallel key before
installing the second rotating holding bush with new
mechanical seal on the second shaft.
—
If the rotating holding bush with thread is not secured
when the shafts are turned, the position of the holding
bush can imperceptibly change while the second bush is
being aligned. Use the special tool / Multitool for the
installation.
