Extension board with 16-input 16-output Installation | en 13
Bosch Security Systems B.V.
Installation manual
2024-01 | V02 |
4.4 Closing the case
Insert the hooks on the lower edge of the front cover into the lugs on lower edge of the
plastic back cover [1]. Ensure that the BOSCH logo is not upside-down. The upper edge of
the front cover now aligns with the two-point snap-in closures on the upper edge of the
back cover [2], and may thus be clicked gently into place.
Hence the closing process is the reverse of the opening process.

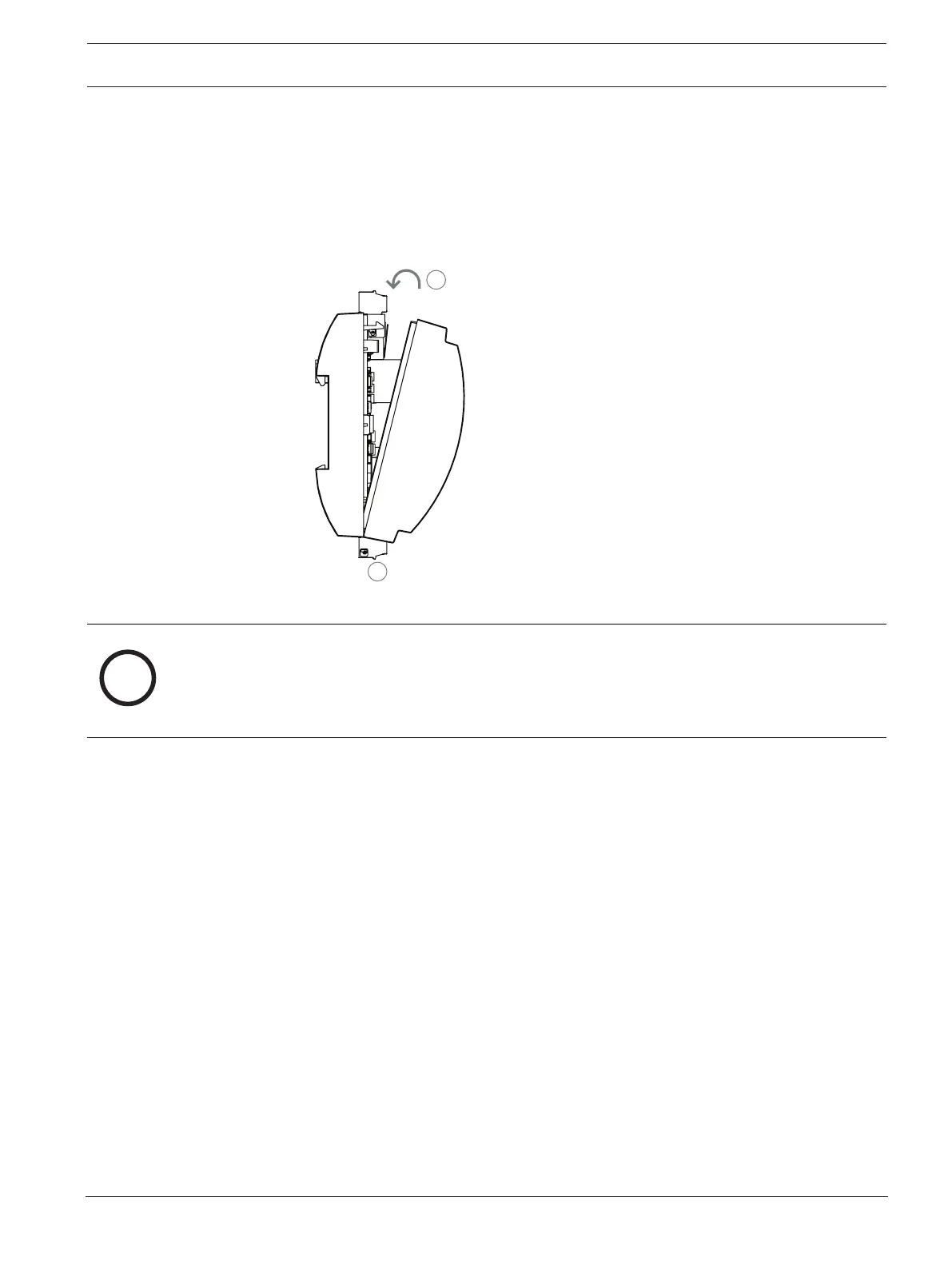

Figure4.4: Closing the extension case
Notice!
Risk of damage to equipment
If excessive force is required to close the front cover then it is probably incorrectly hooked
into the back cover. In this case, remove the cover again and check whether the lower
brackets are positioned correctly.
