4.11 Tamper protection
The extension provides an additional interface to connect external tamper contacts. This
interface is a potential-free 2-pin pluggable screw connector marked with T. When not in
use, this tamper contact should be shorted.

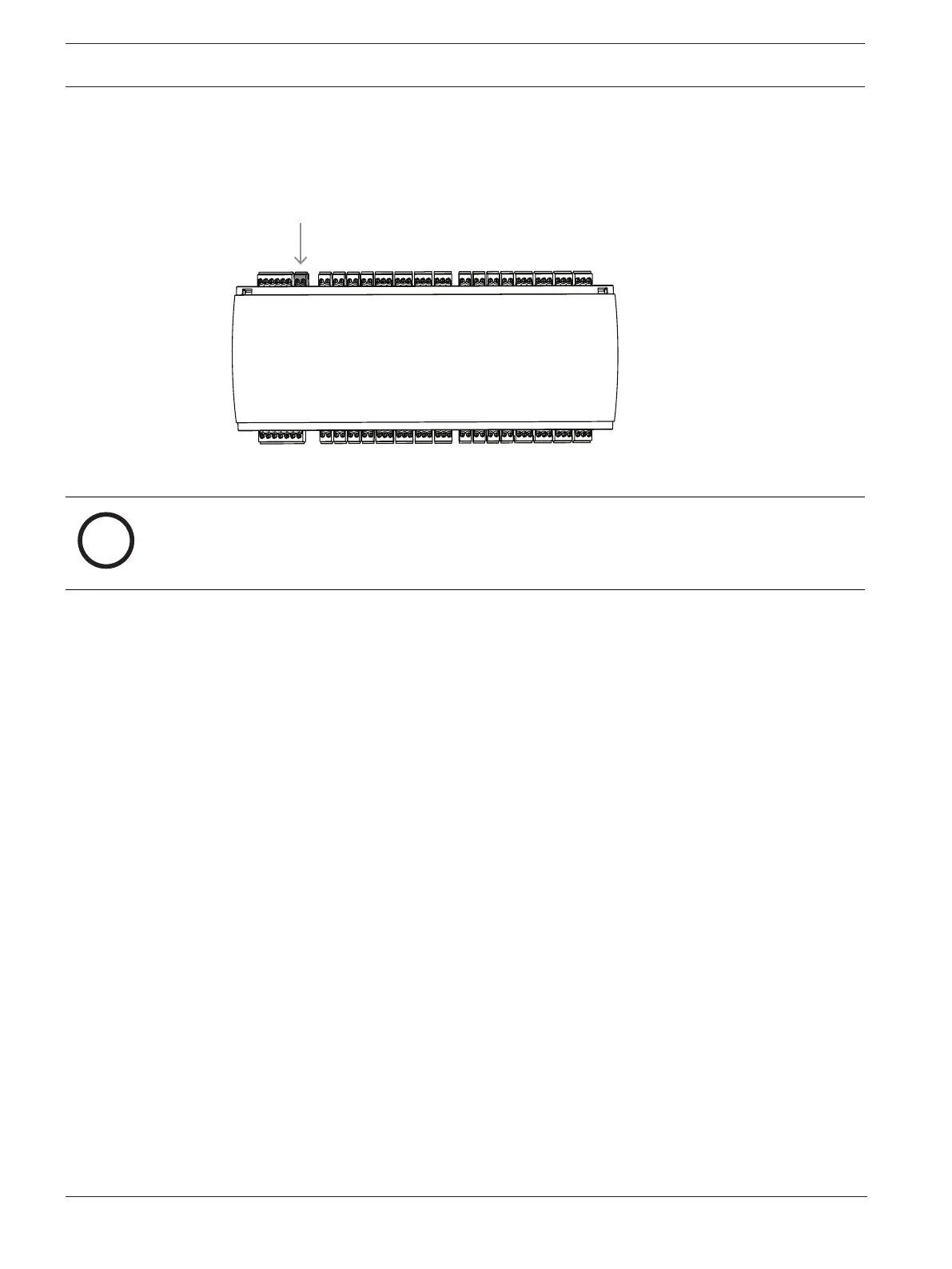

Figure4.18: Location of the tamper protection contact
Notice!
Since the extension does not have its own display, the status information of the input and
output signals is shown on the display of the connected controller. For further information,
refer to the installation manual of the respective controller.
