4.8.1 Addressing
The address of the board is set using a switch on the board’s underside (see Equipment
Configuration).
Notice!
When configuring the system, ensure that the order of boards in the access control
software corresponds to the addresses set when using this switch.

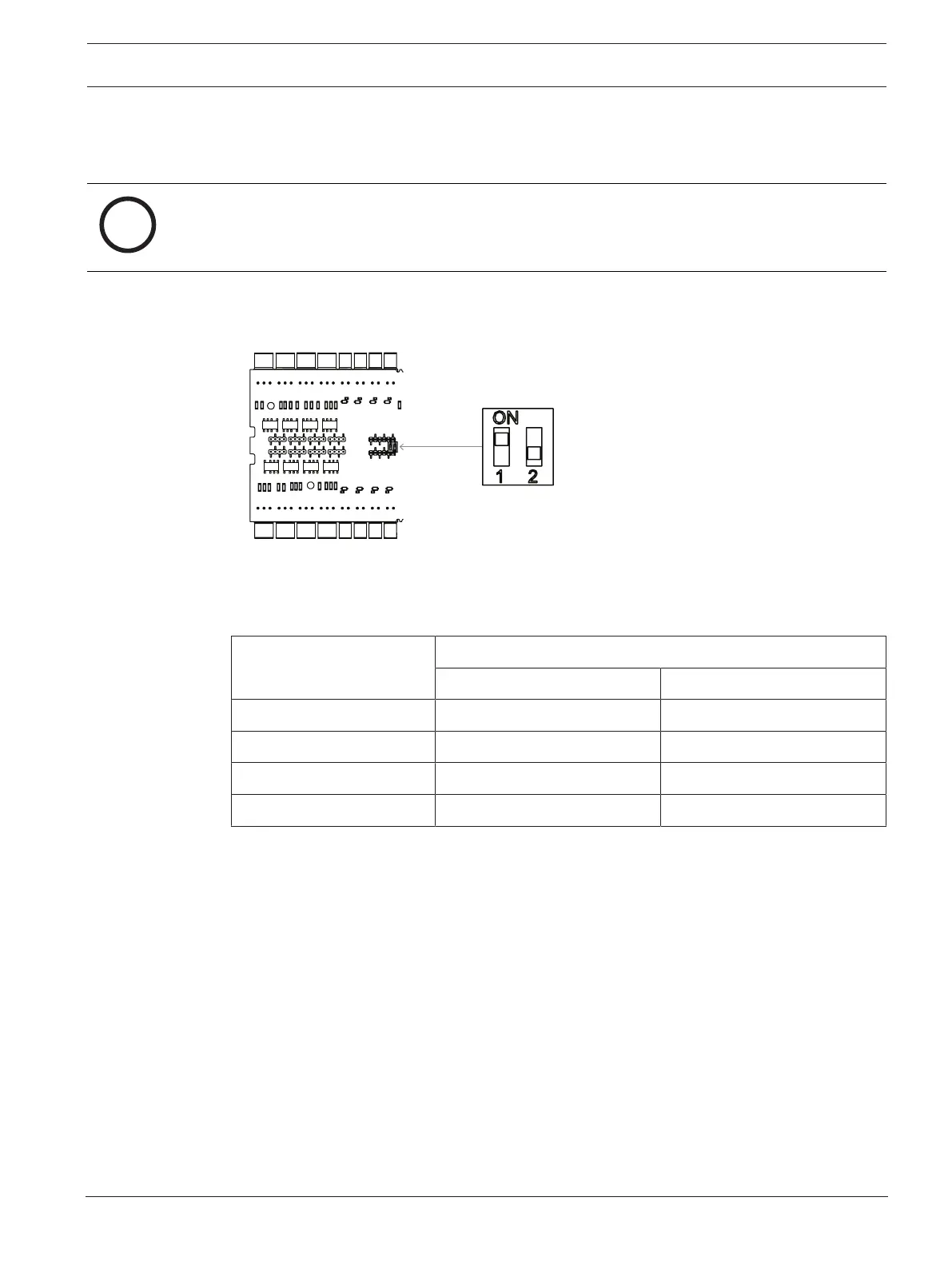

Figure4.11: Location of the selector for host settings
Address DIP switches
1 2
none OFF OFF
1 (delivery status) ON OFF
2 OFF ON
3 ON ON
