38 en | Appendices Extension board with 16-input 16-output

2024-01 | V02 |

Installation manual

Bosch Security Systems B.V.

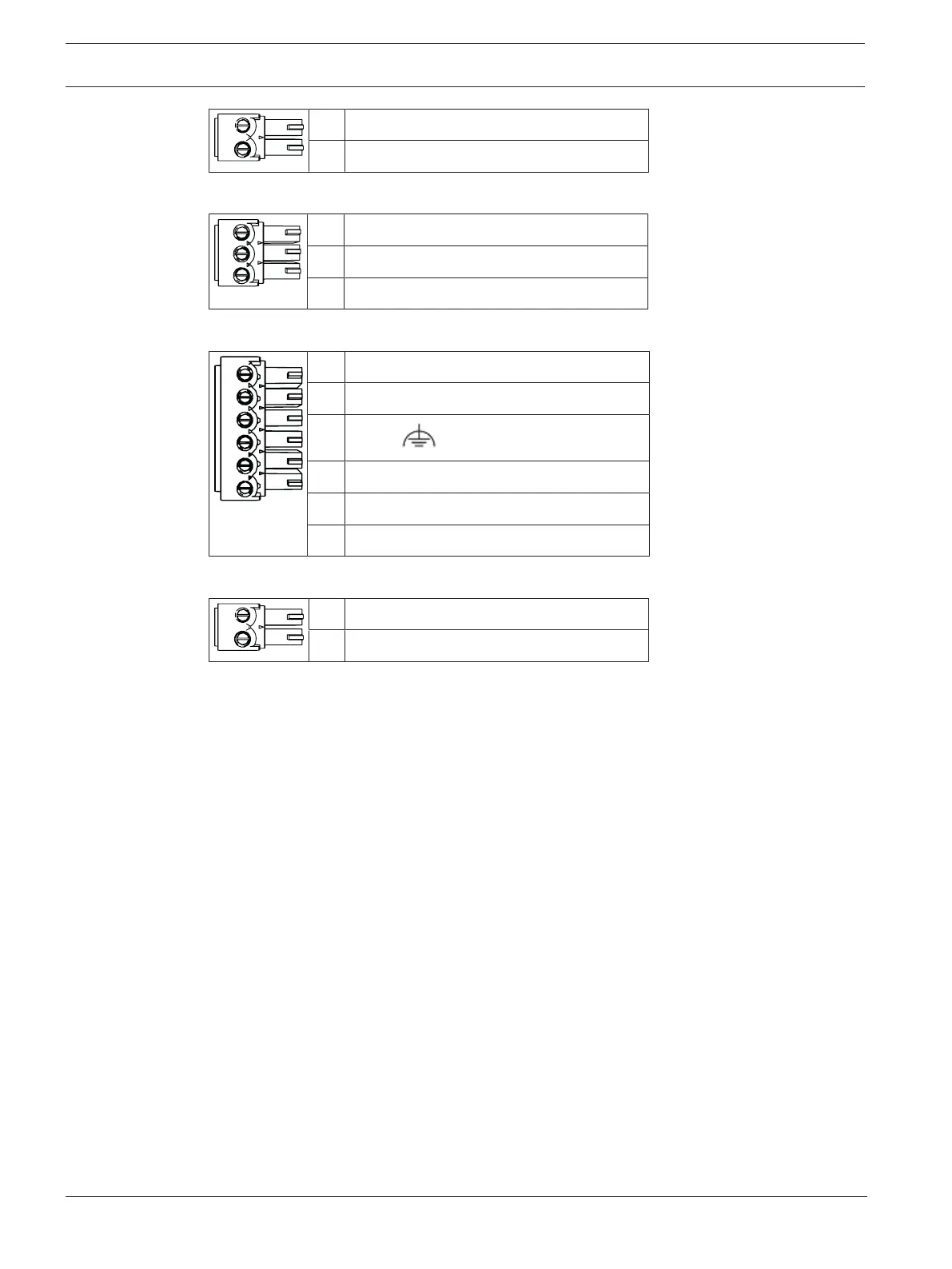

1 Analog Input

2 Analog Input

Table10.4: Analog input

1 Relay Output, normally open

2 Relay Output, common

3 Relay Output, normally closed

Table10.5: Relay output

1 Power supply (10V - 30V)

2 Power supply GND

Shield

4 Data RxTx+

5 Data RxTx-

6 PAG

Table10.6: Extension module bus

1 Tamper Contact

2 Tamper Contact

Table10.7: External tamper contact
