5.4 Programming Language
5.4.1 Control Command Structure
The control commands are executed in accordance with DIN 19239.
They comprise an operation part and an operand part. The control
command may also consist of the operation part only, e.g. open brackets
(, end of program (EP).
Operation Part The operation part consists of up to 4 characters in the form of a com
mand mnemonic. It is divided into the operator (OPR) and the operator
attribute (OPA). The attribute defines the data format.
Operand Part The operand part contains the necessary data to execute a command.
Operands can be written in symbolic or absolute notation. The oper
and part (depending on the operation part) is composed of one or two
operands. Each of these operands consists of an operand identifier
and a parameter. The parameter can be a bit, byte, or word address
(data format). In symbolic notation, the operand is identified with a pre
ceding −" and can consist of up to 8 characters (alphanumeric).
Operation
Part
Attribute
OperandPart
SourceOperand DestinationOperand
Instruction
OPR OPA OKN PAR OKN PAR
,
PAR
OKN
OPA
OPR
Parameter
OperandIdentifier
OperandAttribute
Operator
LW A28
,
B
Examples
Attribute Source Destination
Absolute
LBY −JACK
,
BSymbolic

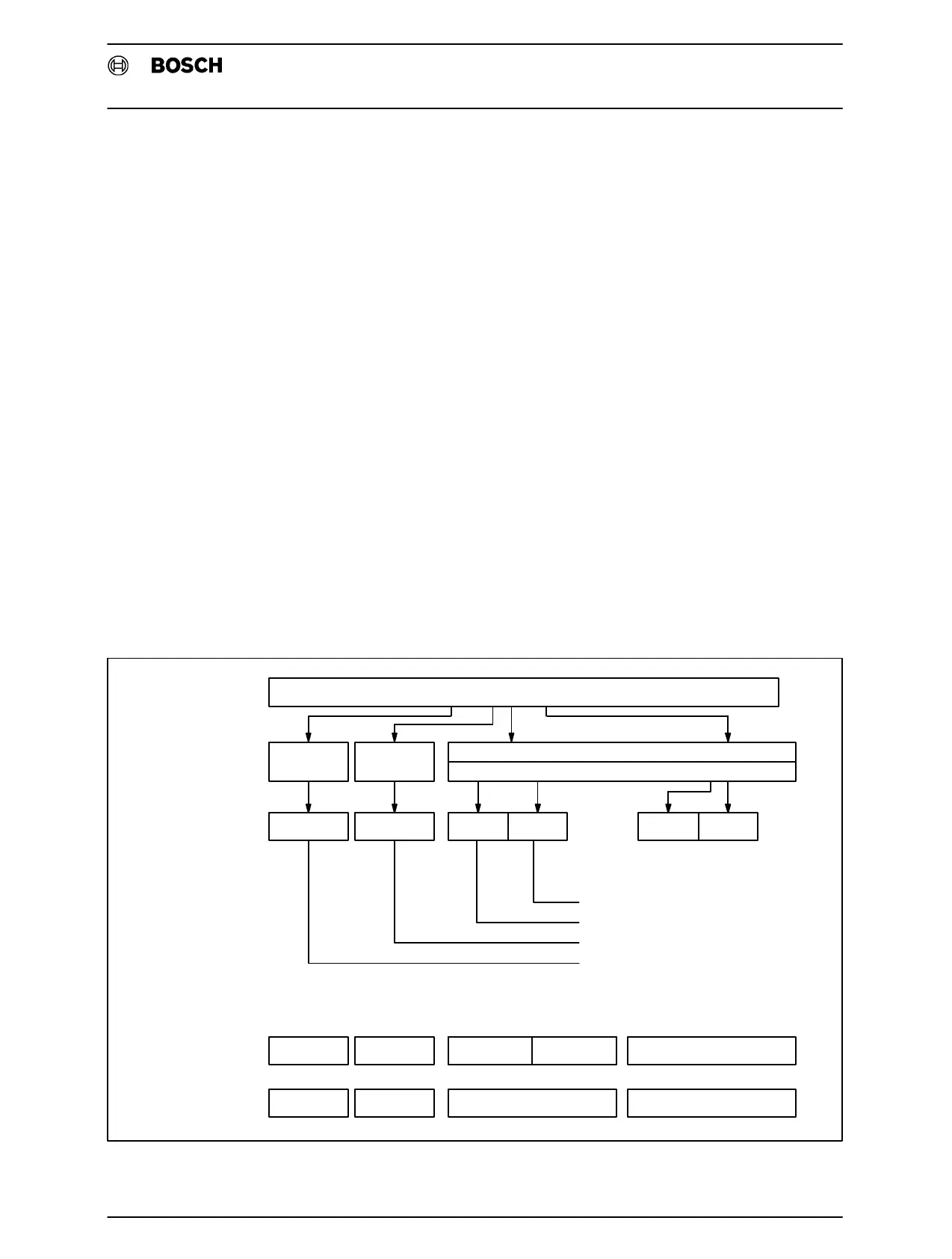

Fig.5−15Control command structure
