Bosch CL300 - Input Address Range IE 24− 16 Inputs

SystemModules
FlexibleAutomation
4−39
D The IE module is to be operated in the extended inputs/outputs
EI/EO.
D On the module the card address must be set to 0" because the
inputs EI1.0, EI1.1, and EI1.2 are defined as interrupt signals. The
remaining five I inputs are inhibited.
EI1.7
EI0.0
Bytewith
higherpriority
I−Inputs
Bytewith
lowerpriority
High−speedInputs
InputAddressRange
XXX

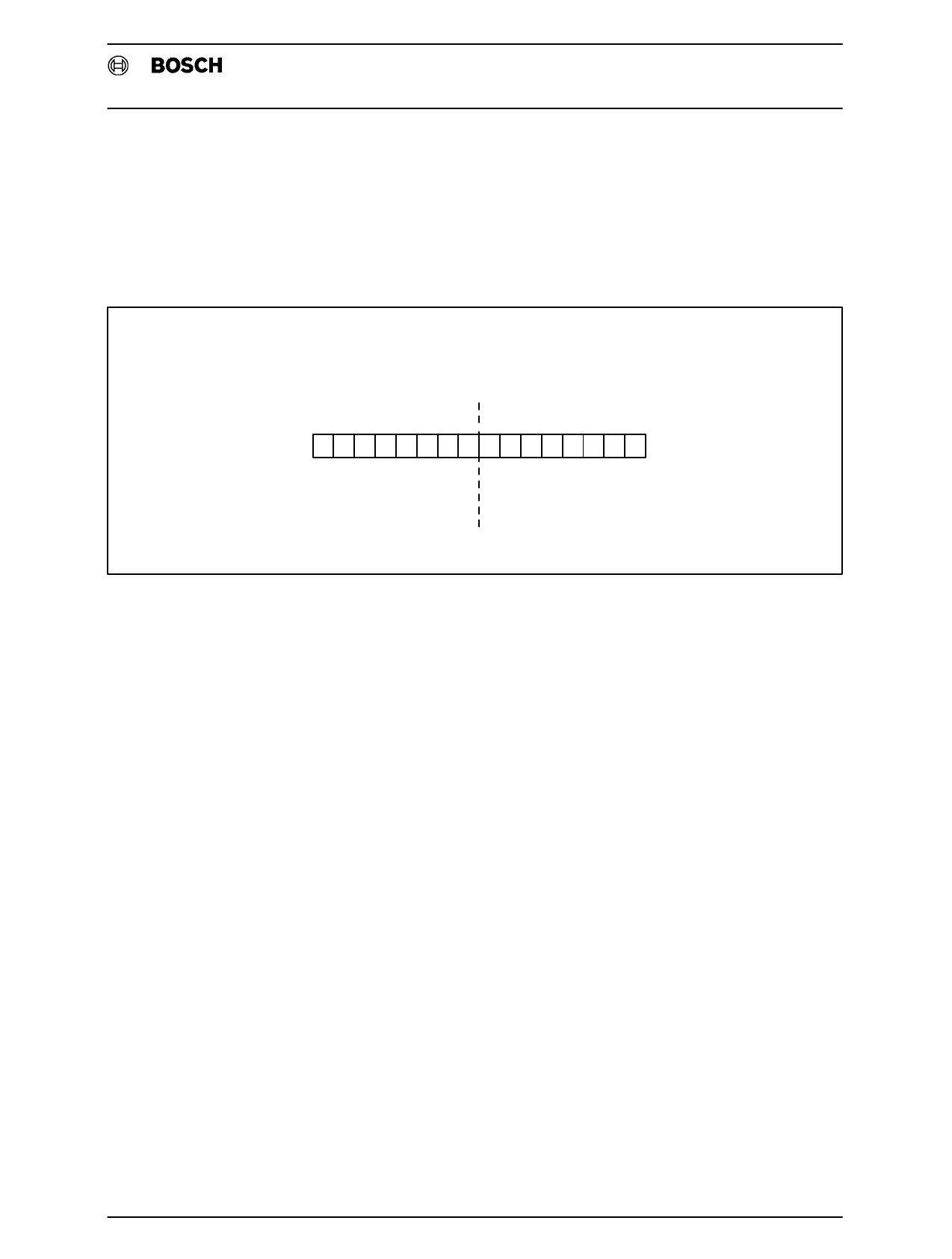

Fig.4−19Input address range IE 24− 16inputs
D After the program has jumped to the appropriate interrupt organ
izational module OM2−OM4, all other interrupts are inhibited and
can be reactivated using the PLC command IF".
D The PLC commands IR, IS, and IF are used to reset, inhibit or en
able the interrupt inputs.
D The arithmetic registers A, B, C of the CL300 controller must be
saved by the user, if necessary, after the jump to the interrupt or
ganizational module.
