Bosch CL300 - Settings NT300;301

SystemModules
FlexibleAutomation
4−9
4.1.4 Settings
Switch S1 for setting the voltages of 115 or 230 V AC, respectively, on the
NT300.
Voltage switch−over is performed automatically on the NT301.
S1
NT300 NT301
J2
J1
upper

J1
J2
circuitboard


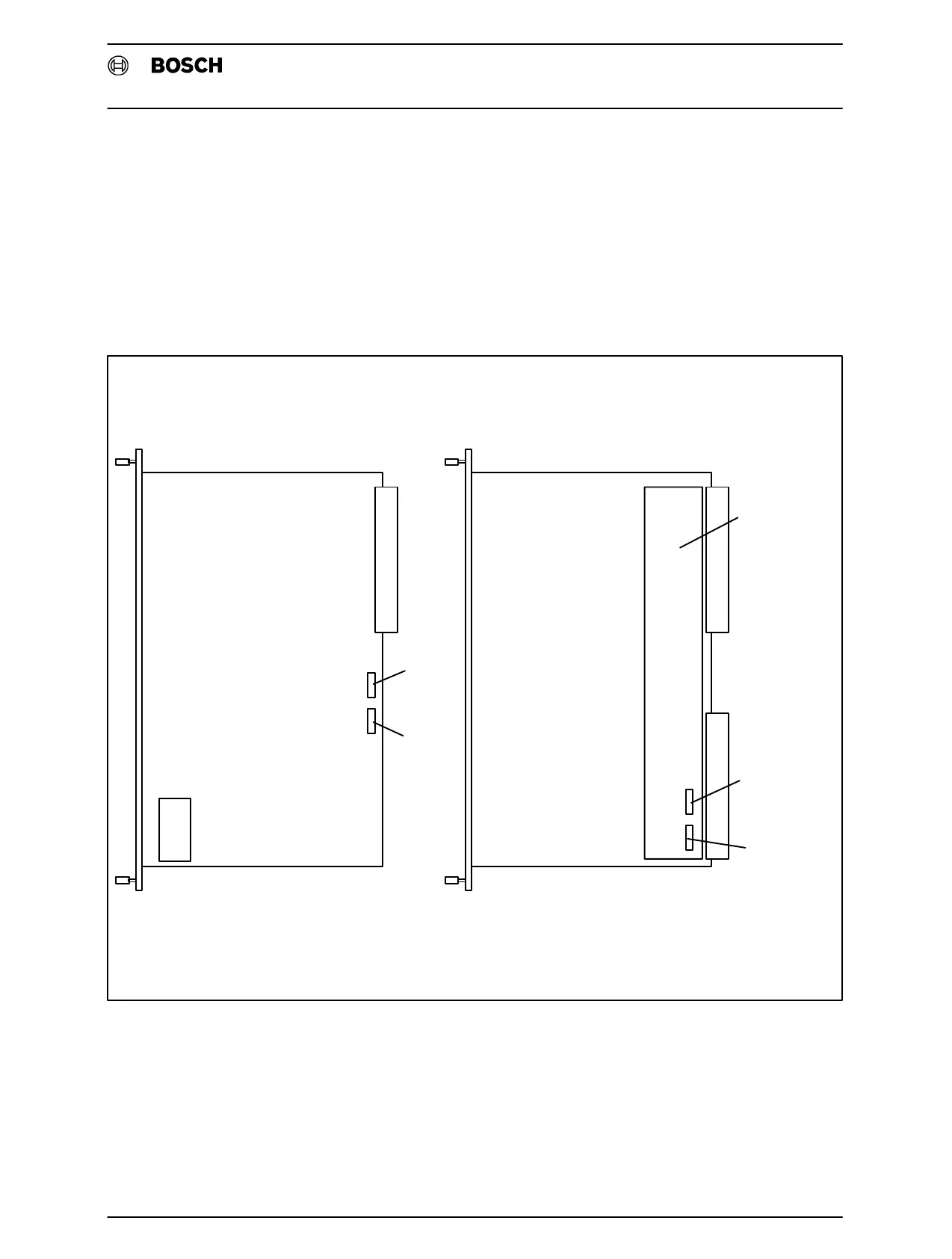

Fig.4−2Settings NT300/301
J1 for Floating Contact D Position 1−2 for ZE in STOP and Power Failure
D Position 2−3 for Power Failure
