4.5 Central Expansion Module AG/Z
AG/Z

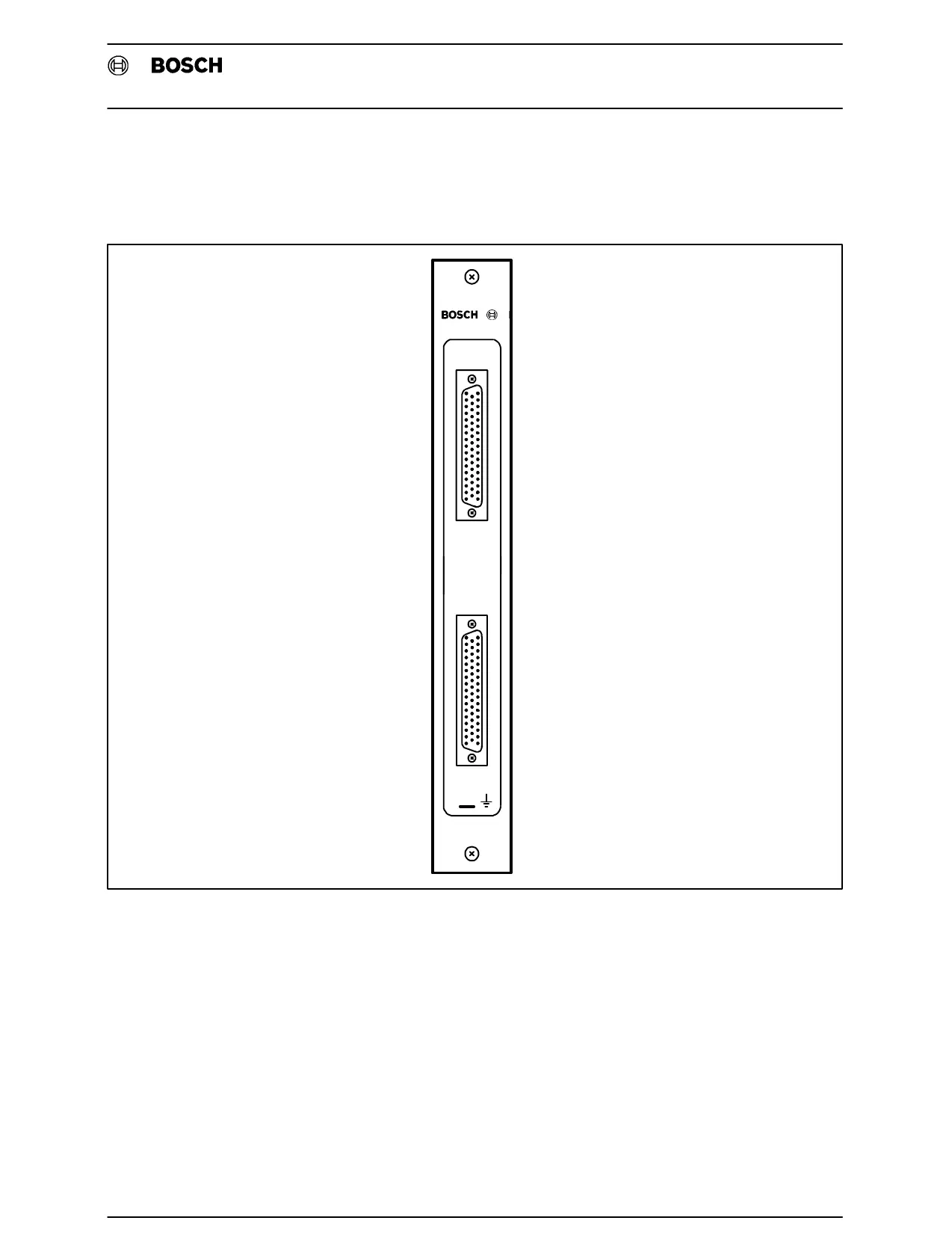

Fig.4−33Central Expansion Module AG/Z
Function The AG/Z Expansion Module is designed for centralized expansion of the
CL300. It provides the internal operating voltages and the peripheral bus
for the expansion units.
Configuration Up to 2 expansion units are connected to a basic unit or remote expan
sion unit, depending on the configuration. These units are located in a
central site. Several basic configurations are possible.
