2.1.5 Basic Unit GG300−K
The GG300−K Basic Unit includes:
D BGT300−K Card Cage
D NT300/301 Power Supply Unit in slots 1 and 2
D ZE300 Central Processing Unit in slot 3
D Peripheral modules in slots 4 to 8
The GG300−K Basic Unit does not contain any intelligent system modules (only in
telligent peripheral modules) nor any AG/DZ Remote Expansion Module.
Each basic unit is supplied with an info card which is inserted on the far left−hand
side of the card cage. The info card contains maintenance and repair information.

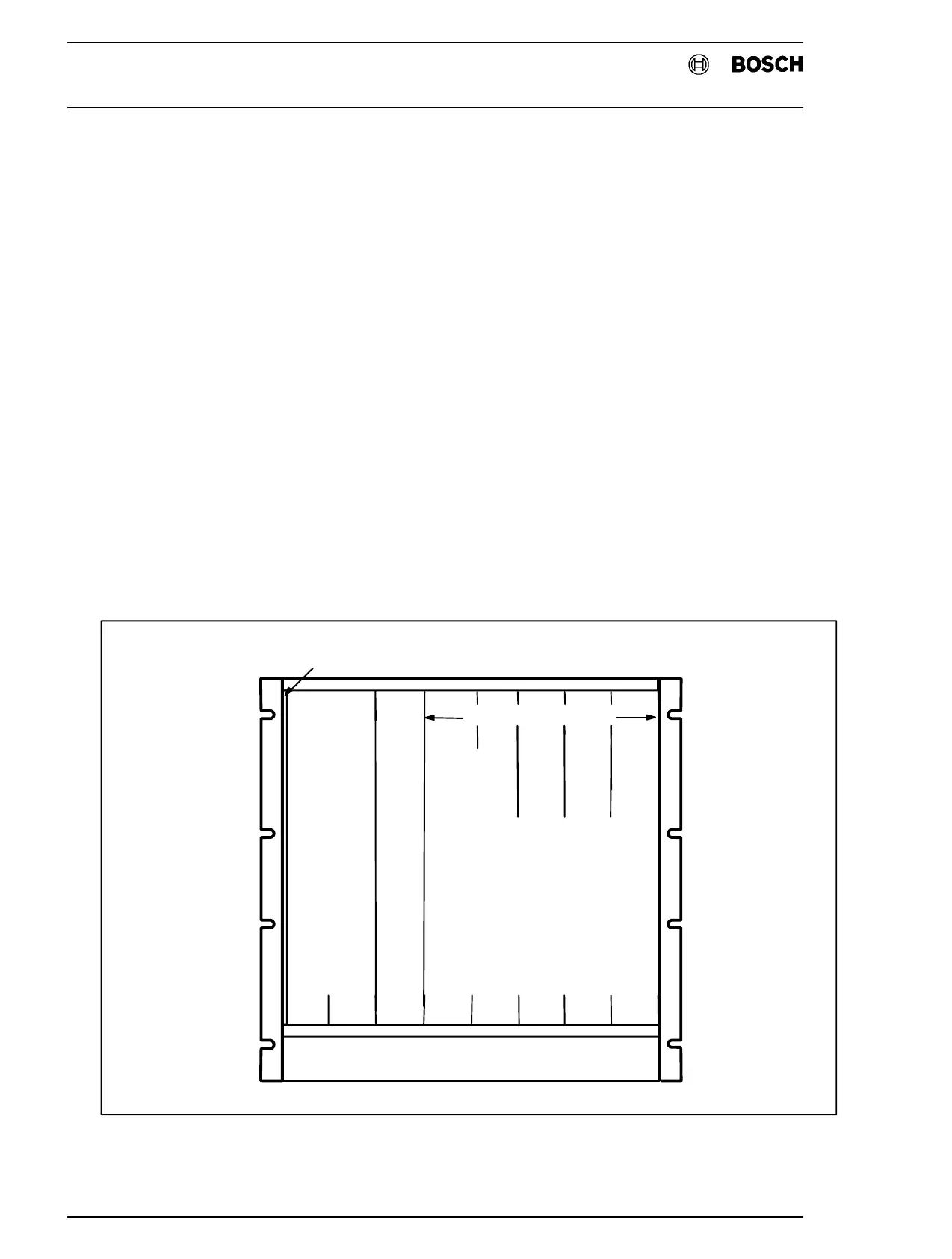

The illustration shows the configuration of the GG300−K Basic Unit.
12345678
NT300/301 ZE300
Peripheralmodules
or or or
AG/Z
or
AG/P
AG/PAG/P
Infocardslot

Fig.2−6Basic Unit GG300−K
