Configuration
FlexibleAutomation
2−11
2.1.4 Basic Unit GG300
The GG300 Basic Unit includes:
D BGT300 Card Cage
D NT300/301 Power Supply Unit in slots 1 and 2
D ZE300 Central Processing Unit in slot 3
D Peripheral modules in slots 4 to 14
The GG300 Basic Unit does not contain any intelligent system modules (only intelli
gent peripheral modules) nor any AG/DZ Remote Expansion Module.
Each basic unit is supplied with an info card which is inserted on the far left−hand
side of the card cage. The info card contains maintenance and repair information.

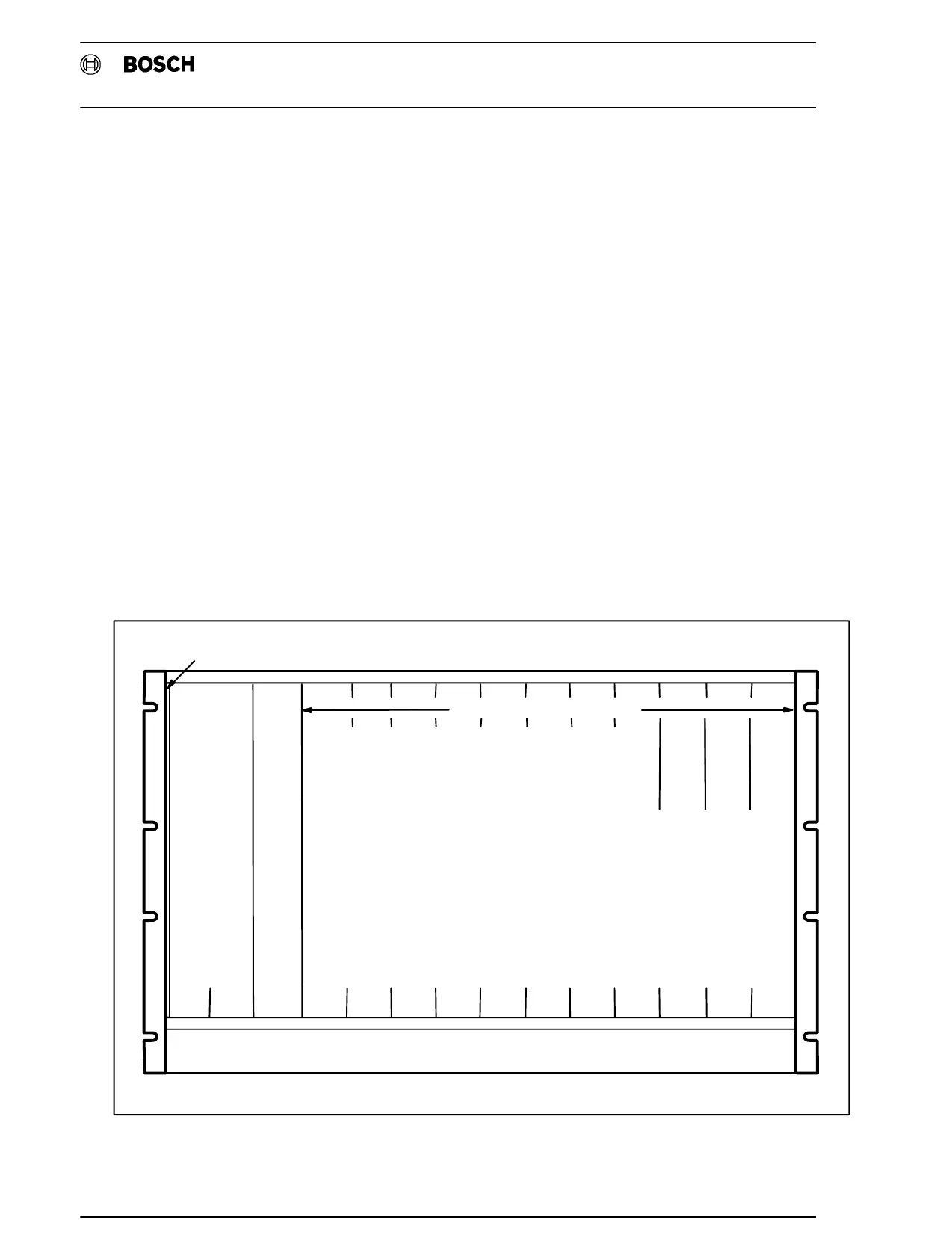

The illustration shows the configuration of the GG300 Basic Unit.
1 2 3 4 5 6 7 8 9 10 11 12 13 14
NT300/301 ZE300
Cableduct
Peripheralmodules
or or or
AG/Z
or
AG/P
AG/PAG/P
Infocardslot
Fig.2−5Basic Unit GG300
