Configuration
FlexibleAutomation
2−13
2.1.6 Expansion Unit EG300
The EG300 Expansion Unit is used to expand the CL300.
The EG300 Card Cage has the same overall dimensions as the BGT300/301 Card
Cages. It contains a peripheral bus but no system bus and can accommodate the
following modules.
D Input/output modules
D Intelligent peripheral modules (e.g. EZ20 External Counter Module and
PU402 Positioning Unit)
D Expansion modules
Ordering Information Order No.
Expansion Unit Card Cage14 slots 052004
Cable Duct 054152
Filler Panel, 1 module width 046208
1234567891011121314
Cableduct
Peripheralbus

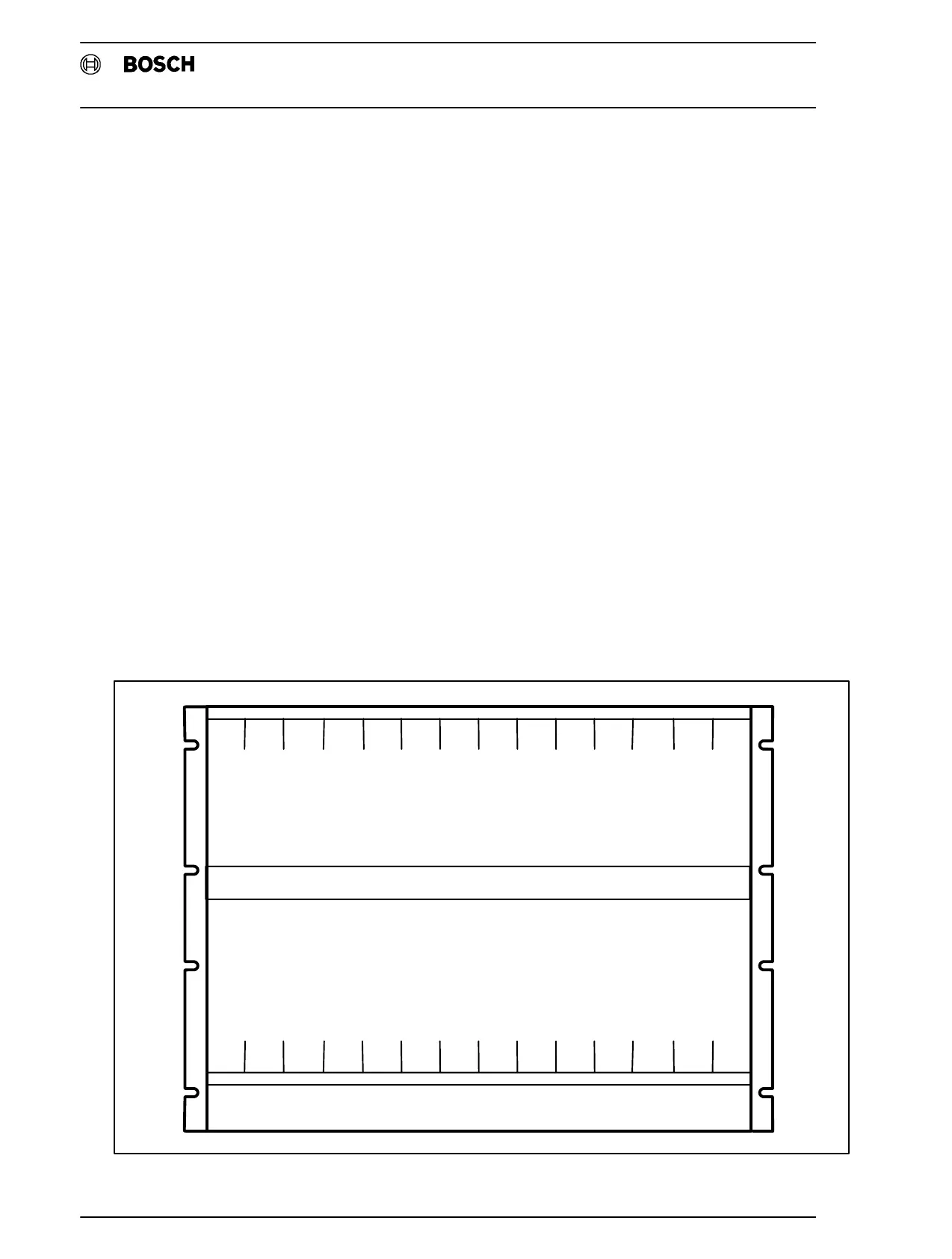

Fig.2−7Expansion Unit EG300
