SystemModules
FlexibleAutomation
4−30
Two 24V DC modules with 16 inputs each shall be allocated the ad
dresses 4.0 through 7.7.
Start address 4.0 is set on the first module using the DIL switch (see
above).
Start address 6.0 is set on the second module using the DIL switch.
0
1
2
3
4
5
6
7

4.0
4.1
4.2
4.3
4.4
4.5
4.6
4.7
Byte1
1stCard StartAddress4.0
0
1
2
3
4
5
6
7

5.0
5.1
5.2
5.3
5.4
5.5
5.6
5.7
Byte2
0
1
2
3
4
5
6
7

6.0
6.1
6.2
6.3
6.4
6.5
6.6
6.7
Byte3
2stCard StartAddress6.0
0
1
2
3
4
5
6
7

7.0
7.1
7.2
7.3
7.4
7.5
7.6
7.7
Byte4

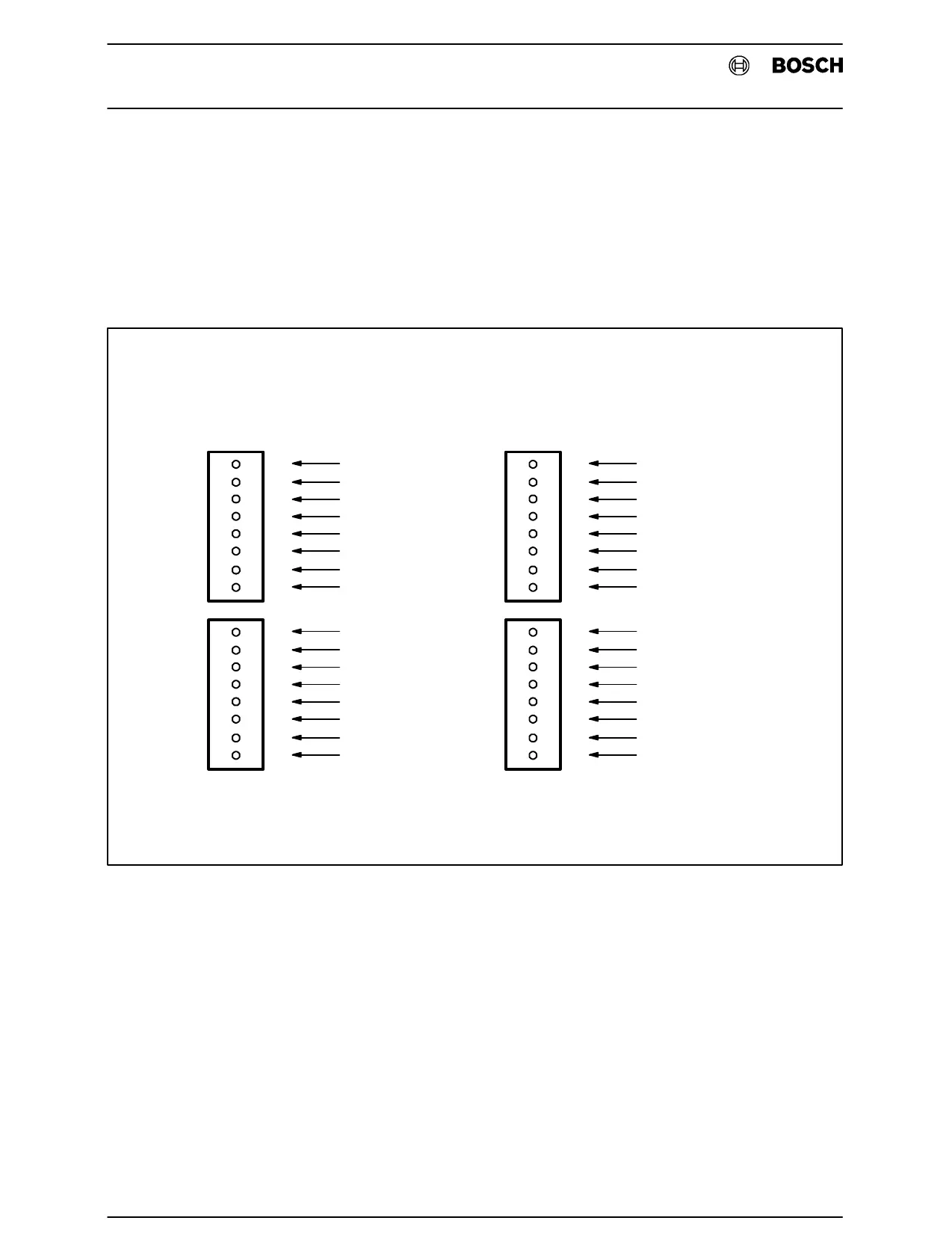

Fig.4−11Addressing Example
Ordering Information Input Module Order No.
24V DC 16 inputs 047963
24V DC 32 inputs 047961
24V DC 16 inputs2−pin 044312
230V AC 16 inputs2−pin 046267
115V AC 16 inputs2−pin 046427
