Geothermal Systems
Closed-loop and pond applications require
specialized design knowledge. No attempt at these
installations should be made unless the dealer has
received specialized training. Utilizing a Bosch flow
center, hose kit, and connection accessories will
simplify the installation process. Anti-freeze
solutions are utilized when low-evaporating
conditions are expected to occur.
Refer to the Bosch flow center installation manuals
for specific instructions.

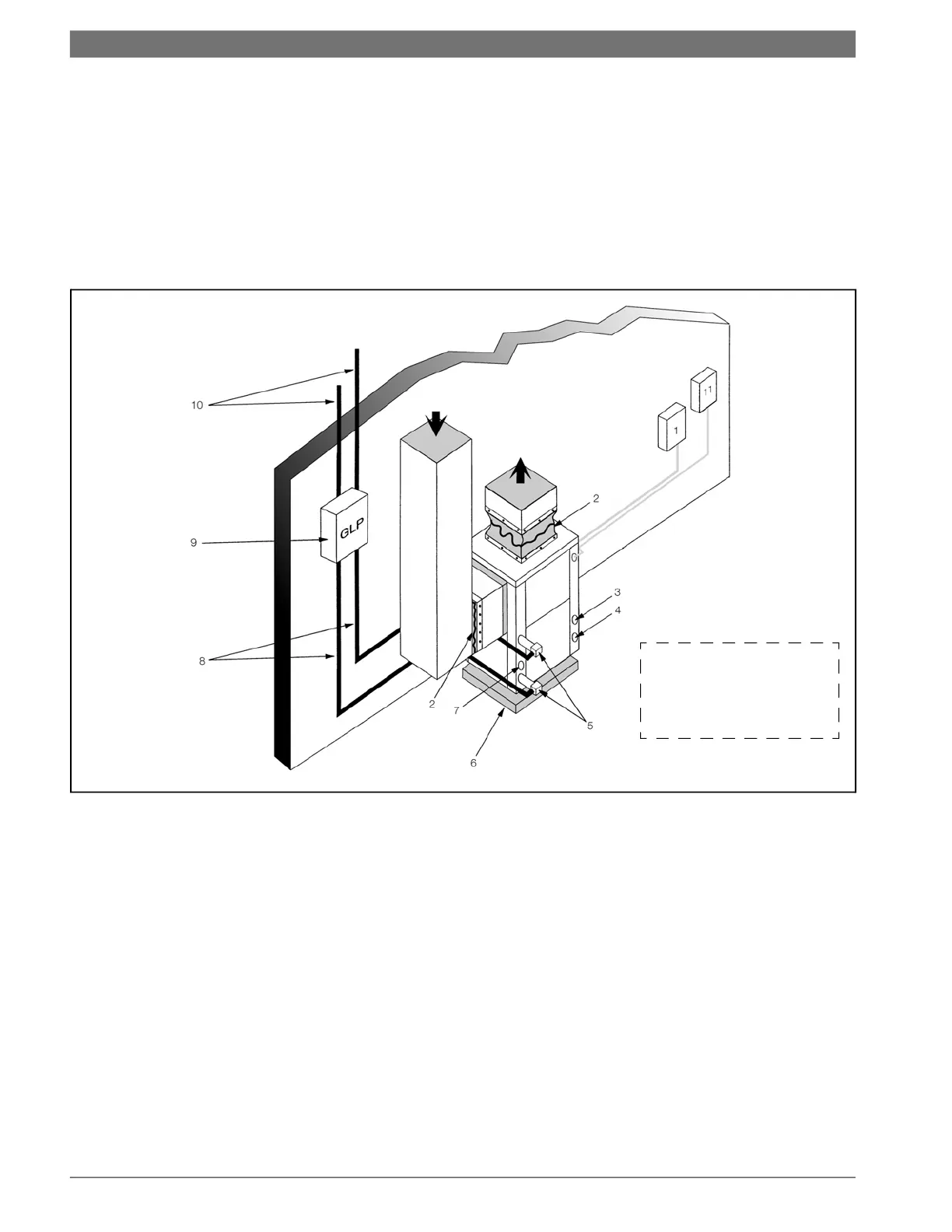

Fig. 55 Typical Geothermal System Setup
[1] Line voltage disconnect (unit)
[2] Flex duct Connection
[3] Low voltage control connection
[4] Line voltage connection (unit)
[5] P/T ports
[6] Vibration pad
[7] Condensate drain connection
[8] Ground loop connection kit
[9] Ground loop pumping package
[10] Polyethylene with insulation
[11] Line voltage disconnect (electric heater)
This diagram shows a typical
installation and is for
illustration purposes only.
Ensure access to Heat Pump
is not restricted.
