8 | Unit Installation
Subject to change without prior notice
UNIT INSTALLATION
This section contains information on the following:
• Location Selection—page #8
• Blower Configurations—page #8
• Return and Discharge Air Duct Flange
Preparation—page #14
• Corner Cap Installation (for HZ only)—page #14
• Mounting Vertical (VT) Units—page #16
• Mounting horizontal (HZ) Units—page #16
• Hanging Bracket Kit—page #16
• Condensate Drain—page #18
• Duct System—page #18
• Piping—page #18
• Electrical—page #21
• Electronic Thermostat Installation—page #21
• Heat Recovery Package (HRP) Setup—page #22
• Specific Application Considerations—page #24
• Post-Installation System Checkout—page #27
• Unit Start-up—page #27
LOCATION SELECTION
Install the unit in an indoor area that allows easy
removal of the filter and access panels, and has
enough room for service personnel to perform
maintenance or repair. Provide sufficient room to
make fluid, electrical, and duct connection(s). If
the unit is located in a confined space such as a
closet, provisions must be made for the return air
to freely enter the face of the unit’s air coil. On
horizontal units, allow adequate room below the
unit for a condensate drain trap and do not locate
the unit above supply piping.
Service clearance for SM units up to 6 tons
includes the following recommendations.
• 18" minimum, 24" optimum in front of the
blower access panel for access to the blower
and blower motor if needed.
• 24" minimum, 36" optimum in front of the front
access panel for access to electrical
components, compressor, and service valves if
needed.
BLOWER CONFIGURATIONS

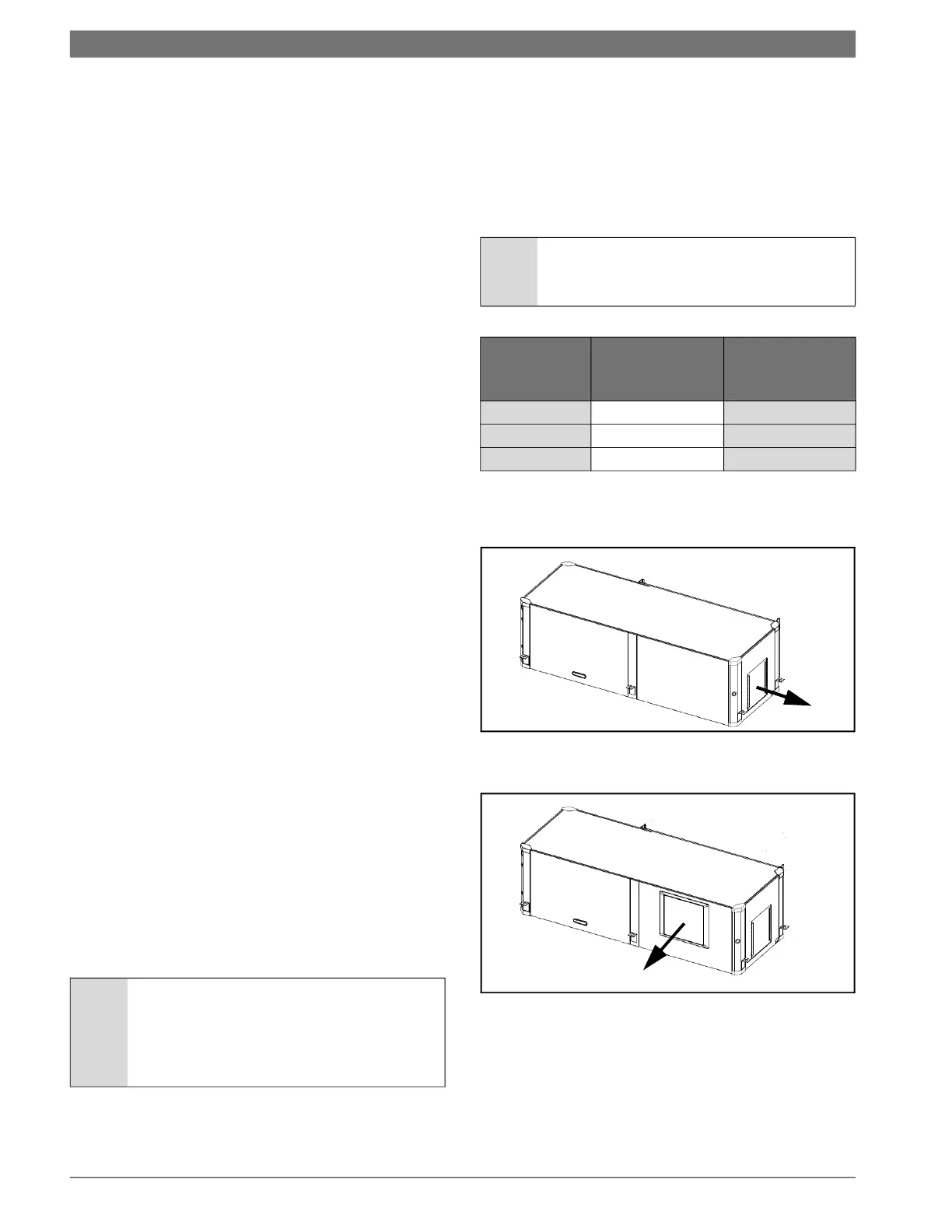

Horizontal (HZ) Blower Configuration
The HZ configuration water source heat pump is
designed to have a field-configurable blower
orientation: end blow to straight through. An
accessory kit is required to make this conversion.
Table 1 Conversion Kit Part Numbers Required
Fig. 8
Fig. 9
NOTICE: These units are not approved for
outdoor installation; therefore, they must
be installed inside a structure in a
conditioned space. Do not locate in areas
that are subject to freezing.
NOTICE: Discharge air configuration change
is not possible on Heat Pumps equipped
with field-installed Electric Heat (end blow).
Part # FLE to FLS End
to Straight
Through
FRE to FRS
End to Straight
Through
SM024 HZ 8733951152 8733951155
SM036/048 HZ 8733951153 8733951156
SM060/070 HZ 8733951154 8733951157
