Electrical Box Typical Layout and Spare
Parts List

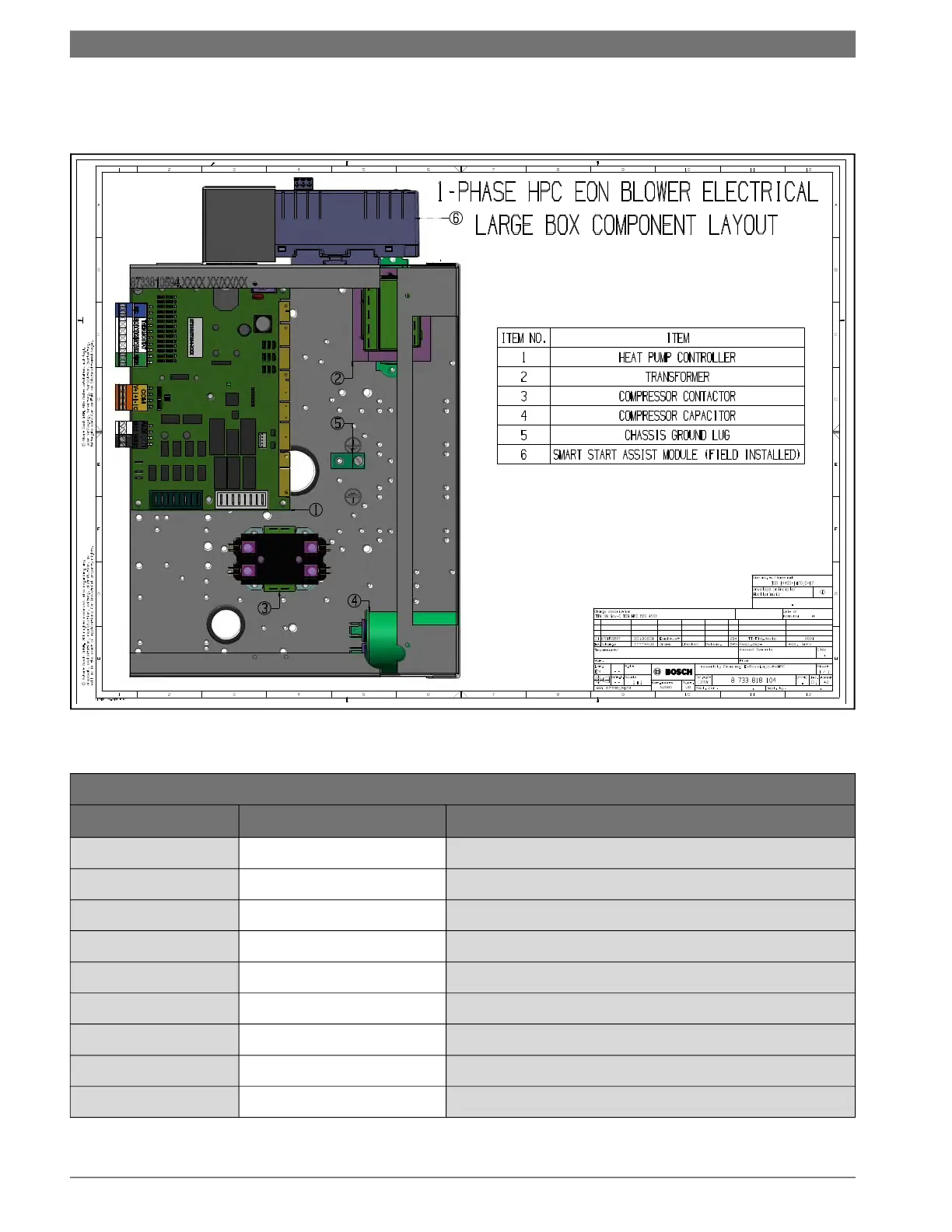

Figure # 89 Typical Electrical Box Layout
Table 17: Electrical Box Spare Part List
# Description Part Number
3
Contractor 8733907959—Contactor 40A 2-Pole
1
Control Board 8733807394—Heat Pump Controller
2
Transformers 8733802669—Transformer 75 VA 208/240
2
Transformers 8733933694—Transformer 75VA - 120–208–240–480V
4
Capacitors & Boots 8733802668—Capacitor 35/370
4
Capacitors & Boots 8733802759—Capacitor 40/370
4
Capacitors & Boots 8733802760—Capacitor 30/370
4
Capacitors & Boots 8733802761—Capacitor 40/440
7
Smart Start Cntl 8733920430—Control Unit Smart Start Assist
