Required Tools
• 5/16" hex head driver
• 3/8" hex head driver
• 7/16" hex head driver
• Flat screw driver
• Phillips screw driver
• 1/4" hex head driver
• Needle nose pliers
• 5/16"–1/4" ratchet wrench

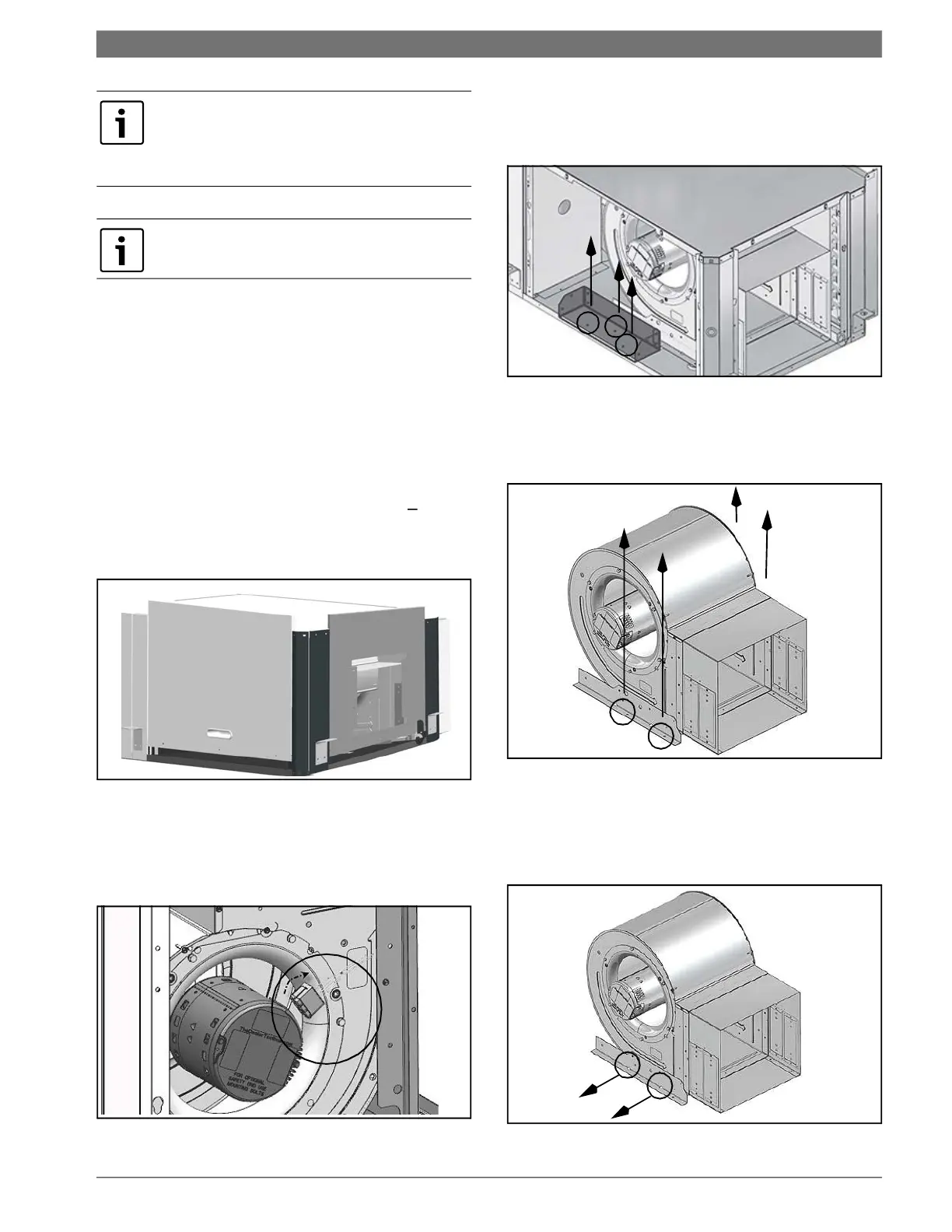

Instructions—Left-Hand Unit (SM0**-1HZ-*L*-**)
1. Remove and discard the end [1] and side [2]
panels. (See Fig. 10.)
Fig. 10
2. Disconnect the blower motor wiring and
ground wire fastened to blower housing. (See
Fig. 11.)
Fig. 11
3. Remove the bracket by removing the three
screws securing it and retain the bracket. (See
Fig. 12.)
Fig. 12
4. Loosen the blower assembly by removing the
four screws securing it. (See Fig. 13.)
Fig. 13
5. Remove the bracket by removing the two
screws securing it and retain the bracket. (See
Fig. 14.)
Fig. 14
Left-hand and right-hand Horizontal (HZ) units
have different Blower Configuration instructions.
Left-hand unit instructions refer to page #9 and
right-hand unit instructions refer to page #11.
Blower configuration changes should be done
prior to unit being installed in the final location.
To Next Page
