Blower Configurations | 11Greensource CDi Series SM Model
8733819578 (2019/02)Greensource CDi Series SM Model
Subject to change without prior notice

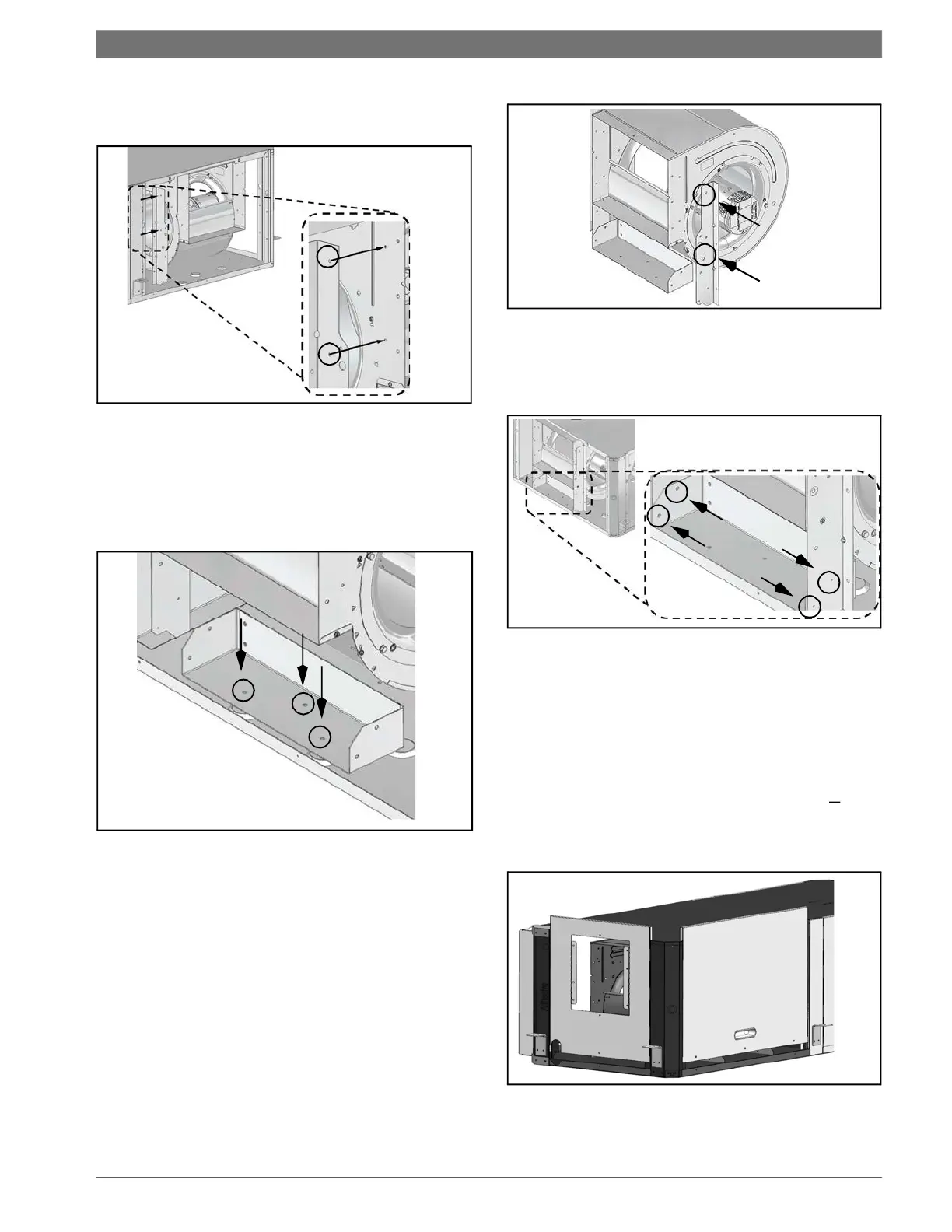

11. Reinstall the bracket in its new vertical
position using two screws. (See Fig. 20.)
Fig. 20
12. Reinstall the bracket removed in step Fig. 3 to
the same location using three screws. (See Fig.
21.)
Fig. 21
13. Reinstall the remaining bracket using two
screws. (See Fig. 22.)
Fig. 22
14. Connect the vertical and horizontal brackets
using four screws. (See Fig. 23.)
Fig. 23
15. Reconnect blower motor wiring and ground
wire.
16. Install the new blower panel from the
accessory kit.
Instructions—Right-Hand Unit (SM0**-1HZ-*R
*-**)
1. Remove and retain end and side panels. (See
Fig. 24.)
Fig. 24
To Next Page
