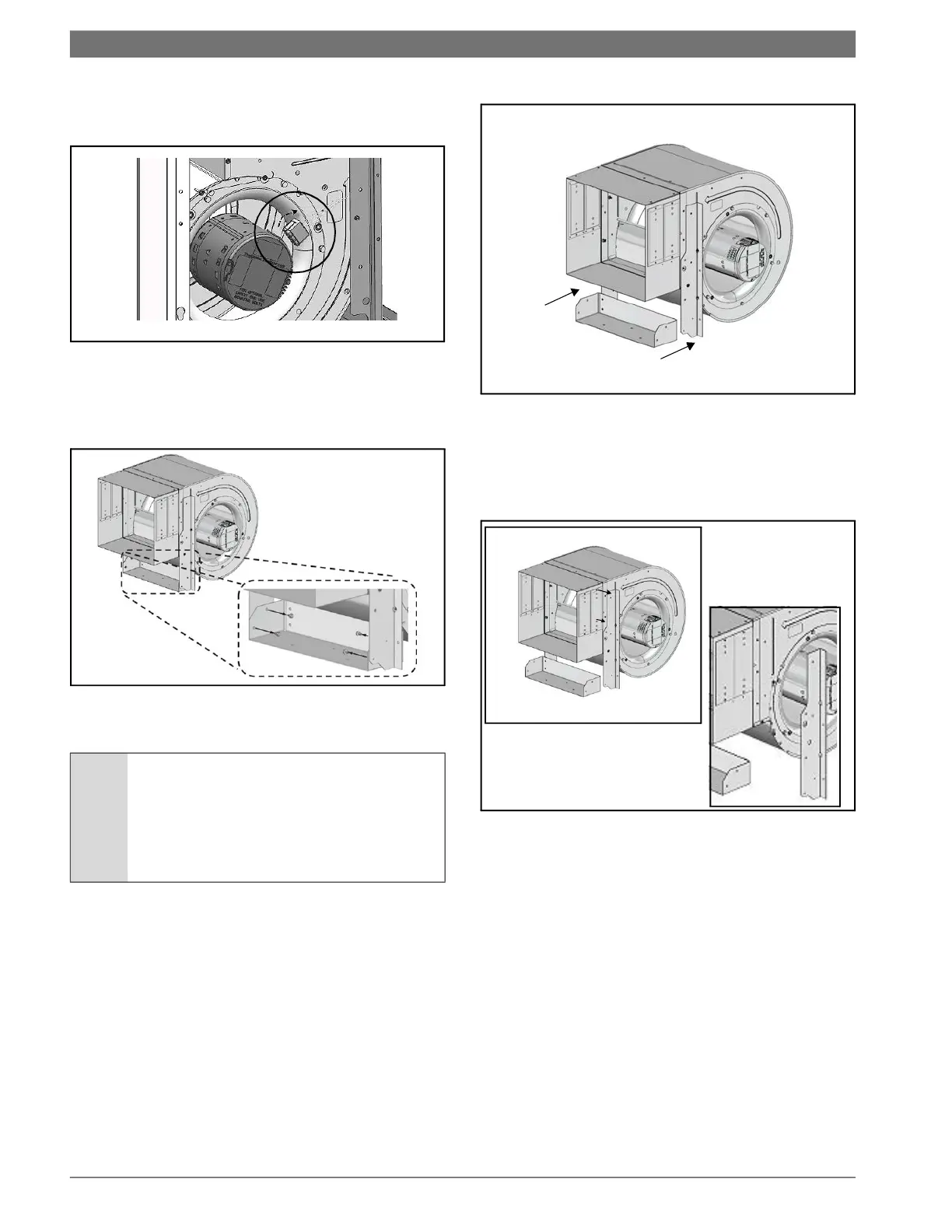

2. Disconnect blower motor wiring and ground
wire fastened to blower housing. (See Fig. 25.)
Fig. 25
3. Remove and retain the four screws under the
blower collar. (See Fig. 26.)
Fig. 26
4. Slide the blower assembly away from mounting
bracket. (See Fig. 27.)
Fig. 27
5. Remove one vertical bracket by removing the
two screws and retain the bracket. (See Fig.
28.)
Fig. 28
6. Remove the horizontal blower bracket by
removing the three screws and discard. (See
Fig. 29.)
NOTICE: The air coil is in close proximity to
the blower. The air coil fins are easily
damaged. Great care must be taken during
this step to avoid coil damage. Shipping
cardboard can be used as protection during
blower removal and installation.
