Blower Configurations | 13Greensource CDi Series SM Model
8733819578 (2019/02)Greensource CDi Series SM Model
Subject to change without prior notice

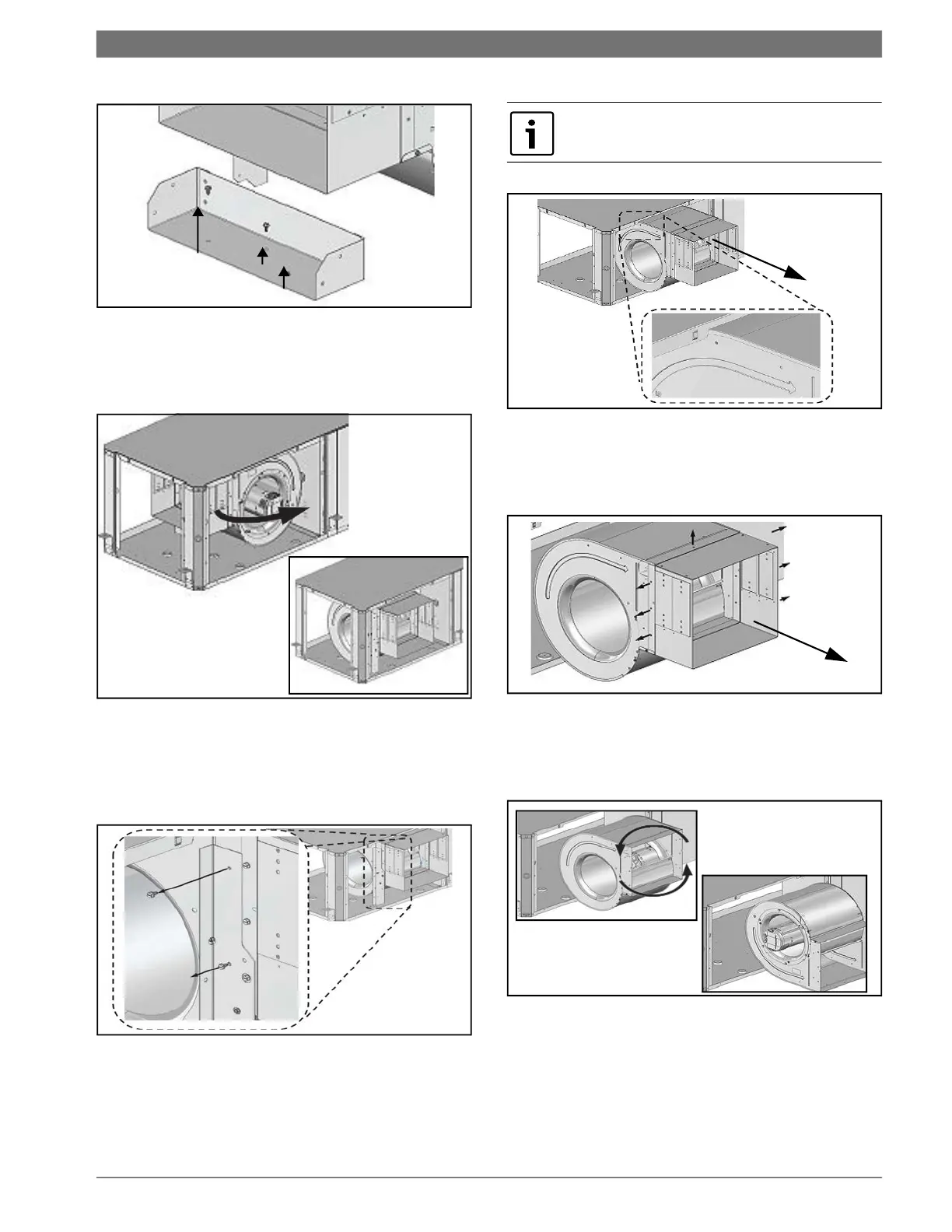

Fig. 29
7. Rotate the blower into its new position. (See
Fig. 30.)
Fig. 30
8. Remove the remaining vertical blower bracket
by removing the two screws and retain. (See
Fig. 31.)
Fig. 31
9. Remove the blower assembly by sliding it
forward. (See Fig. 32.)
Fig. 32
10. Remove the blower collar by removing its eight
screws and discard the collar. (See Fig. 33.)
Fig. 33
11. Reorient the blower assembly 180 degree with
the blower “belly” up. (See Fig. 34.)
Fig. 34
12. Slide the blower back into the cabinet. (See
Fig. 35.)
The unit’s top is notched to allow blower to slide
through.
