Mounting vertical alignment lasers | HTD 6xx / HTD 8xx | 77 en
8. Mounting vertical align-
ment lasers
! For this alignment method with vertical alignment
laser, it is absolutely necessary to use the height-
adjustable track system for the beam setter!
i For vertical alignment of the HTD 6xx / HTD 8xx, an
optional, green vertical laser can be mounted to the
column of the beam setter.
8.1 Scope of delivery
1
2
3
4
5
6

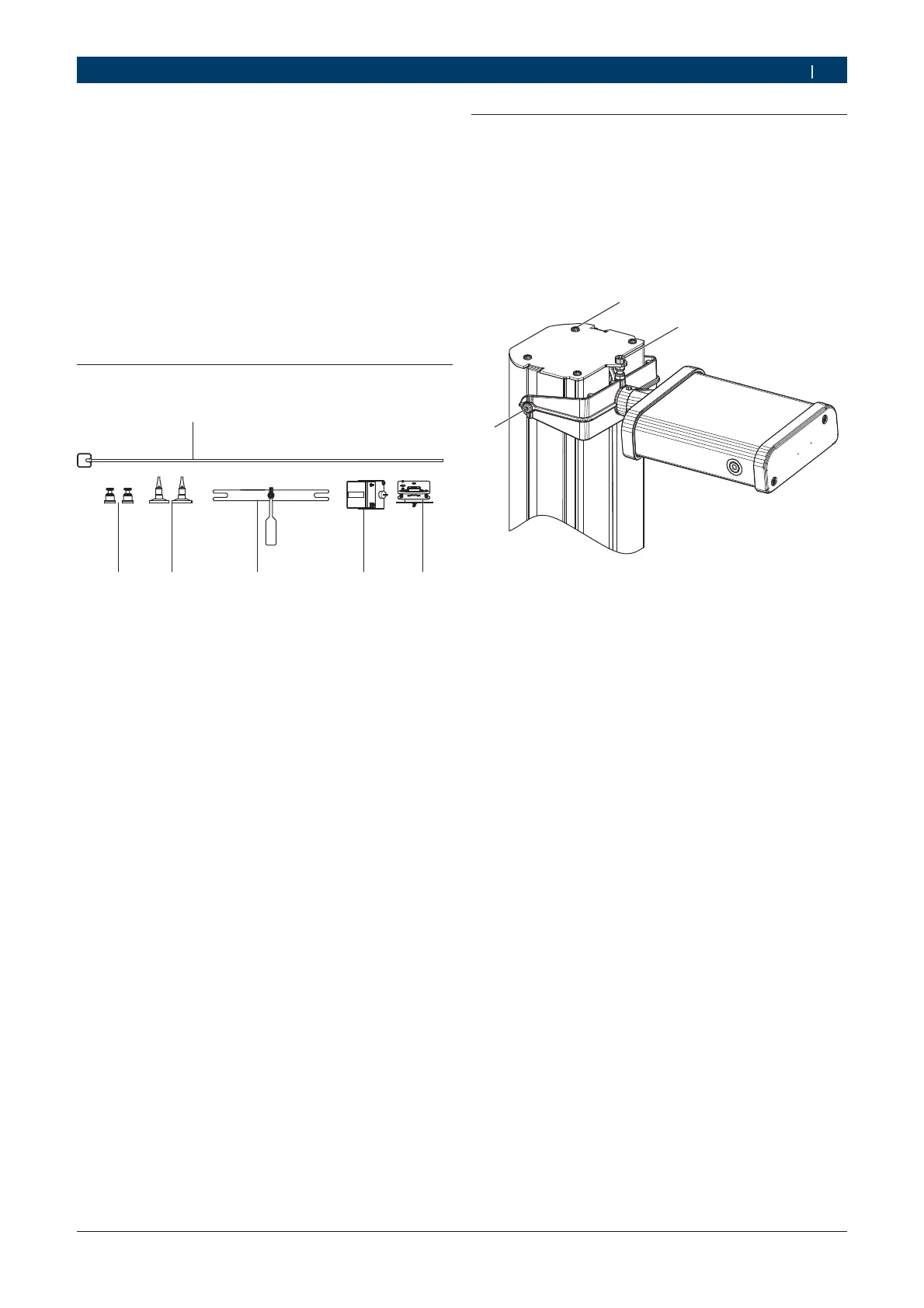

Fig. 21: Scope of delivery
1 Magnetic fastener (2x)
2 Vacuum cup holder (2x)
3 Pendulum with holder
4 Vertical alignment laser
5 Holder for vertical alignment laser
6 Rod with reflection table
8.2 Mounting the holder for vertical
alignment laser
1. Demounting the alignment laser:
 Loosen the lock nut from the alignment laser's
adjusting screw and unscrew screw from holder.
 Unscrew fastening screws (2x) from holder for
alignment laser.
2. Dismount cover plate from post.
1
2
3
Fig. 22: Loosening the cover plate from the post
1 Fastening screws (4x)
2 Adjusting screw alignment laser
3 Attachment holder alignment laser
