MIC IP ultra 7100i │ MIC IP starlight 7100i Mounting | en 19
Bosch Security Systems Installation Manual 2019-12 | 1.2 |
MIC cameras are designed to be mounted upright (straight up, 90°), inverted (straight down,
90°), or canted upright (ball up, 35°). The tilt limits for the canted unit prevent it from working
properly if mounted ball down. See the figures below for illustrations of the correct and the
incorrect mounting orientations of MIC cameras.

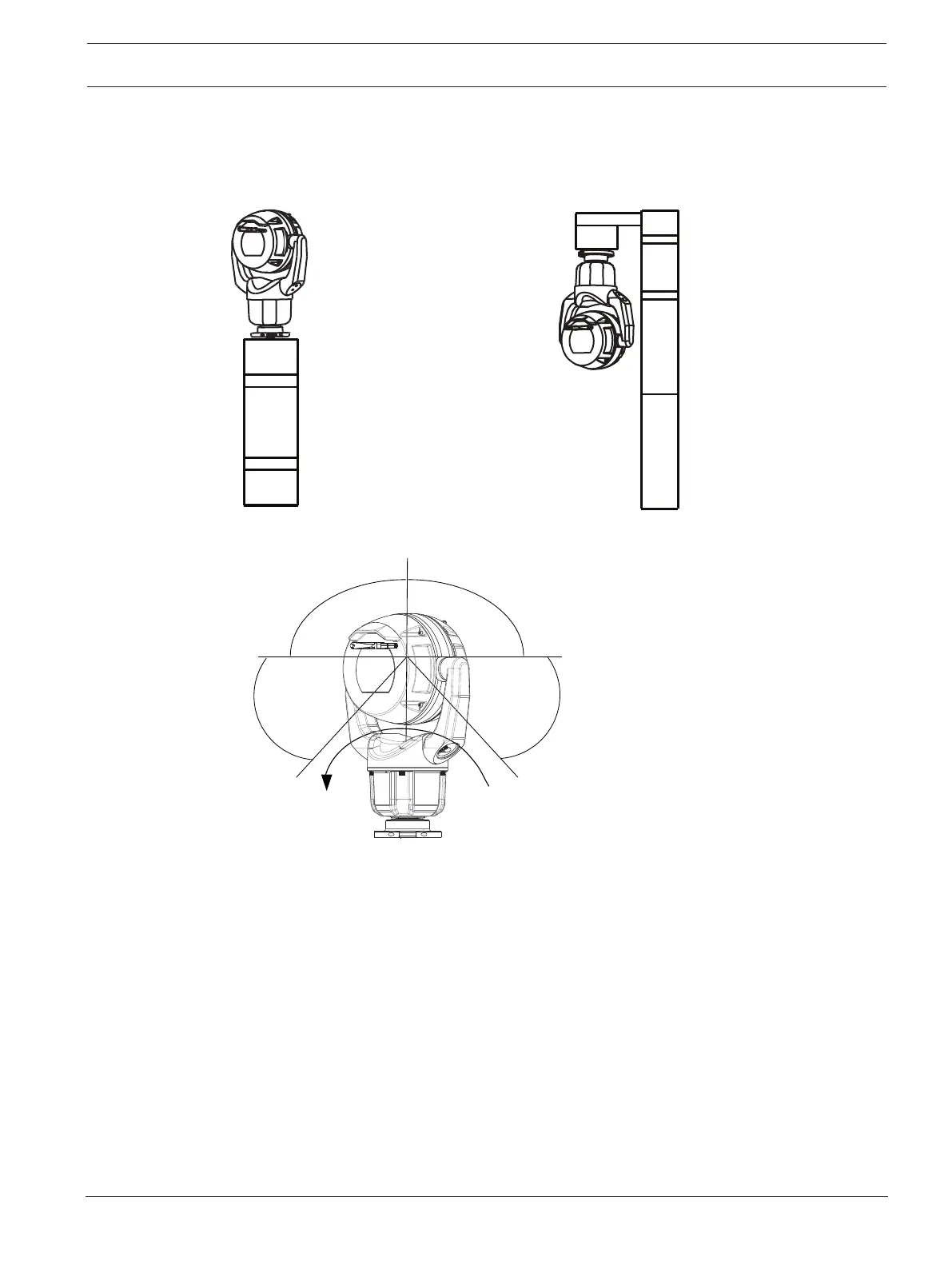

Correct mounting orientation - upright Correct mounting orientation - inverted
55° 55°
90° 90°
AutoPivot
Figure5.1: Tilt range, MIC IP ultra 7100i
